Industrial fast Ethernet converter

Overview

The converter includes a single-port PSE controller, which provides PD signature detection and power monitoring functions.

NT-IN 312 Industrial Gigabit POE Media Converter series are 2-port 10/100/1000Base-TX to 1000Base-SX/LX Industrial Gigabit Fiber Converter.

Other functions include over-current protection and LFP functions. The large format (link Fauit pass-through) allows media converters to monitor fiber and copper RX ports for signal loss.

 It will extend transmission distance of network up to 100Km via fiber port, and the UTP port can operation at 10M, 100M,1000M application.

In the event of loss of the received signal on one media port, the converter will automatically disable the TX signal of the other media port, thereby passing the link fault.

 NT-IN 312 Industrial Media Converter series is packaged in a special compact IP40 metal case that allows either DIN rail or panel mounting for easy installation at control cabinet.

Whether you are buying the simplest Ethernet switch or a set of wireless AP routers, the attachment will include a square-headed, silly, black and thick AC transformer (commonly known as a power supply), which is inconvenient to use.

It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Is it possible to use the network cable for both signal transmission and power supply?

 NT-IN312 Industrial Gigabit Media Converter series complied with IEEE 802.3at High Power over Ethernet technology (optional).

There are similar examples in our lives. For example, we use ordinary fixed telephones in our homes, which do not require additional power.

It is downward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration.

Even if the home is powered off to make calls, because the telephone line can not only transmit voice signals, but also be responsible for powering the phone (smart phones are Large, sometimes requires additional power). As a result, PoE (Power over Ethernet, Power over Ethernet) technology came into being.

With Data and Power over Ethernet from one unit, NT-IN312 Industrial Media Converter series shall reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard:IEEE802.3 10Base-T.IEEE802.3u 100Base-TX/FX.IEEE802.3ab 1000Base-T. IEEE802.3z 1000Base-SX/LX.IEEE802.3x Flow Control. IEEE802.3at PSE 10/100/1000Base-TX can automatically identify the direct-line(MDI) and cross-line(MDIX), is compatible with Various cards, switches, HUB and other Ethernet devices
3. This industrial fast Ethernet converter applies a store-and-forward mechanism to avoid packet loss and error frames
4. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
5. Jumbo frames support a maximum of 1536 bytes
6. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
7. -40 to 80 ℃ operating temperature to meet a variety of complex environments
8. IP40 protection standard for housing
9. Support Ethernet ESD protection and DC power EFT protection
10. DIN rail and panel mounting for easy installation
11. Support Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
12. 12 G switch fabric, 1K MAC address automatic learning table and 512 kb internal data buffer
13. Support max to 2 PSE port, and each port can supply power up to 25.5W(optional)
14. Support SFP fiber module

 Specifications

 Certification

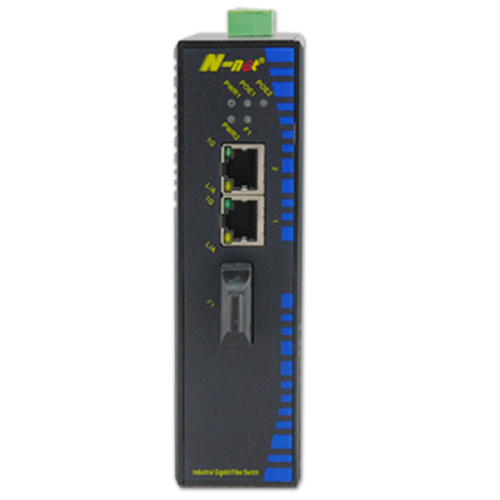

Product picture
