Managed Gigabit Ethernet LCD PoE Switch

N-net Managed Gigabit Ethernet LCD PoE Switch

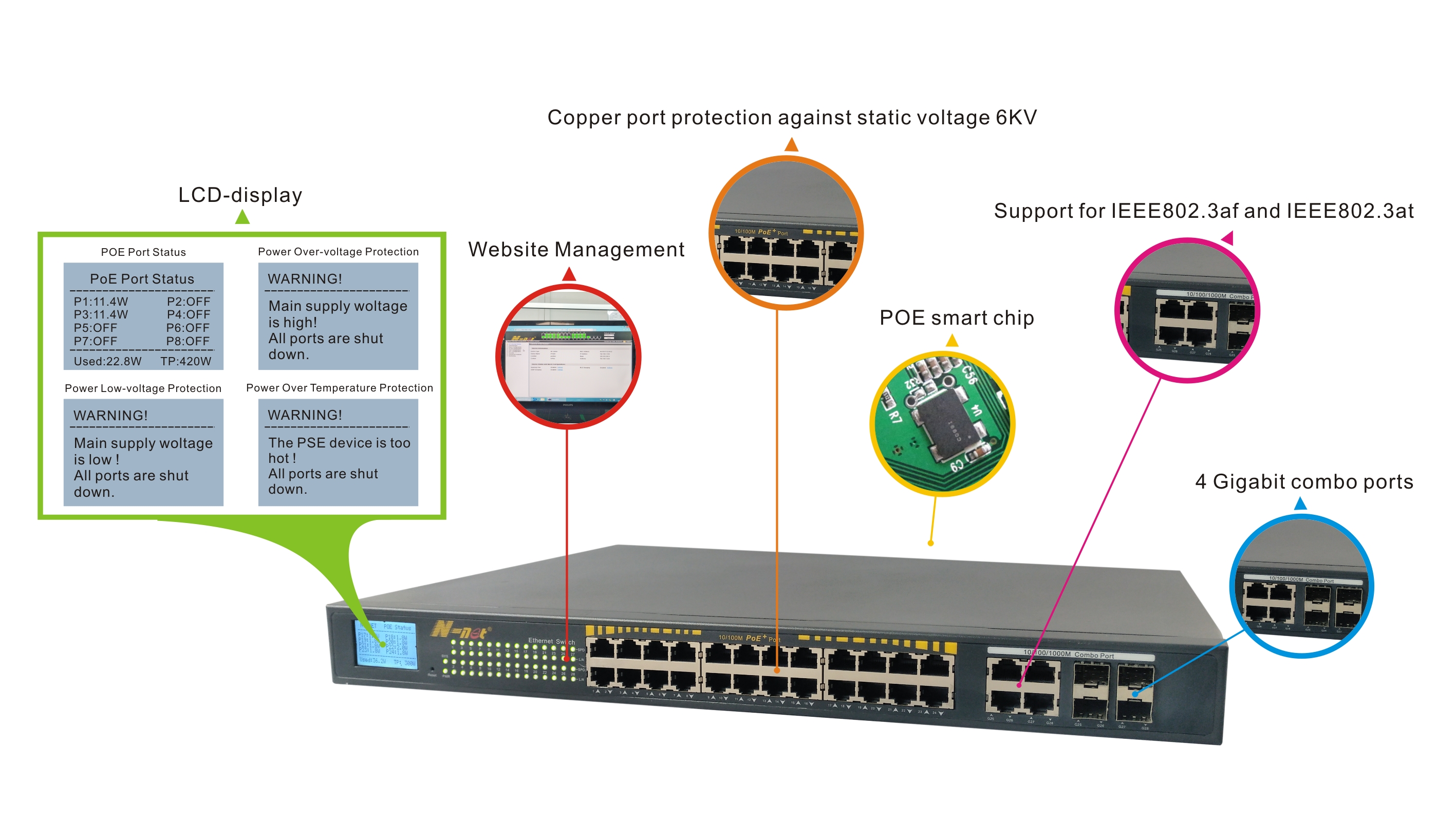

To satisfy the increasing demand of PoE for Gigabit Ethernet (GbE) networking, N-net has developed this series of PoE GbE switch. The NT-35MG22T2GC2GFL-AF24 LCD gigabit PoE switch provides an ideal solution for LAN implementation. This managed 24 ports PoE switch is equipped with (24)10/100/1000M Base-T Gigabit Ethernet RJ45 ports, supporting IEEE 802.3af/ at standard, and 1000Base-X SFP interfaces. N-net LCD Ethernet PoE switch is designed for video monitoring system and network engineering. Through the scolling data on LCD, it's easily to charge the status of your devices at the first time. The LCD screen shows:  8 ports POE state of a page, the residence time is about 5S, according the real-time displying data to update  poe power of PD devices, state monitoring and troubleshooting and so on.

PoE Switch 24 Ports Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets

2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE 802.1p QoS

3. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices

   Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMPSnooping,

   DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.

4. Store-and-forward mechanism is employed to avoid packet loss and error frames

5. Support spanning tree STP(802.1D) and RSTP(802.1W).

6. G.8032, support <50ms industrial quick ring protection

7. Jumbo frames support a maximum of 9.6K kilobtyes

8. Support cable diagnosis

9. Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.

10. 0 ºC To 55 ºC operating temperature to meet a variety of complex environments

11. Copper ports support ESD protection

12. Support PoE power supply up to maximum of 30W per port

13. IEEE 802.3af and 802.3at. Supports per port PoE configuration function

Poe Switch For Ip Camera Detailes

Gigabit POE Switch Instruction:

1. Front board have 29 ports, Provide 24x 10/100/1000Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet COMBO ports and 2x1000Mbps uplink SFP Ports, and 1x console ports.

2. LED Indicator State:

Power:  1 Green light indicates that the power normal work;

SFP: 2 Green lights indicate that the SFP ports is enable

POE:    24 Green lights indicate that the POE is power on;

Ethernet: 24 Green lights indicate 10/100M Ethernet link and speed;

Ethernet: 24 Green lights indicate 10/100M/1000M Ethernet link and speed;

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. PoE Switch                         1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 24 network cables to connect 24 IP cameras with Ethernet switch's 1~24 PoE port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.
