L2 10/100M 16 Ports POE Switch

N-net L2 10/100M 16 Ports PoE Switch

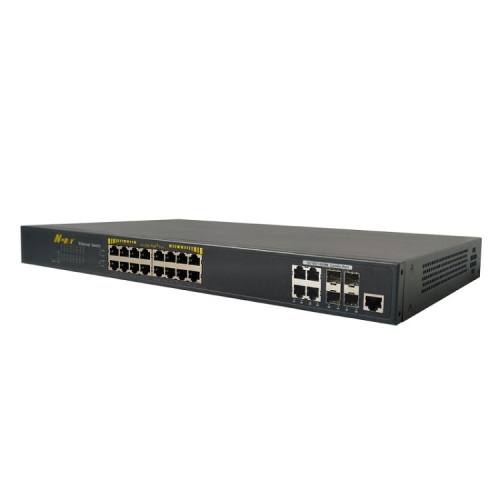

N-net NT-29M16T4GC managed fast ethernet poe switch, is dedicated to the application of video monitoring system and network engineering and design, to provide 16 fast ethernet ports and 4 COMBO ports (Gigabit UPLINK port:fiber and Ethernet port is optional). This stackable  managed fast ethernet PoE switch provides 16 fast Ethernet adaptive RJ45 port, each RJ45 ports support MDI, MDIX automatic turning and line speed forwarding function, and is compatible with IEEE802.3af/at PoE standard, one of the highest output power is 30W. NT-29M16T4GC L2 managed switch suitable for top-of-rack (ToR) deployment in data centers or enterprise and campus aggregation network environments.

Managed PoE Switch 10/100M Features

1. 16x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x1000Mbps uplink SFP Ports ,or 4x 1000M Gigabit Ethernet COMBO ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard
3. Each of 16 ports all support IEEE802.3af/at
4. 10/100Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
5. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,
6. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
7. Store-and-forward mechanism is employed to avoid packet loss and error frames
8. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
9. Support IP/Port/Mac binding.
10. Jumbo frames support a maximum of 9.6K kilobtyes
11. Support enhanced management through WEB, CLI, SSH, SNMP.
12. Maximum power per port: 30W
13. Maximum PoE power: 440W (Port 1 to Port 16)
14. Built-in 1U rack power supply series, easy installation

Managed Fast Ethernet PoE Switch Application

PoE Switch Instruction

1. Front board have 32 ports, Provide 16x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports or 2x 1000Mbps uplink SFP Ports; or 4x 1000M Gigabit Ethernet COMBO ports

2. LED Indicator State:

Power:   1 green light indicates that the power normal work;

PoE:    16 green lights indicate that the POE is power on(Under the RJ45 socket) ;

Ethernet: 28 green lights indicate that the Ethernet Link and Act

Ethernet: 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. PoE Switch                         1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 16 network cables to connect 16 IP cameras with Ethernet switch's 1~16 PoE port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.
