L2 Managed 10/100/1000M Power Over Ethernet Switch

N-net L2 Managed 10/100/1000M Power Over Ethernet Switch

NT-50MG48T4XGF poe switch provides 48 10/100/1000M Ethernet ports and 4 uplink 10G SFP+ ports. with multilayer exchange capacity and wire speed forwarding capability, users can set up the functions of the switch through Web, CLI, TELNET, SNMP and many other ways. Supporting IP, MAC, VLAN, port, user identification element dynamic or static binding. The gigabit managed poe switch is with port isolation, which is to prevent communication between 2 neighbor network equipment the same broadcast domain and reduce network risk. Through supporting the perfect storm control function, N-net L2 managed PoE switch can restrain the broadcast, multicast and unicast storm. It is very suitable for converged applications of large networks and core applications of small and medium networks.

Managed Gigabit Ethernet PoE Switch Features

    1. Built-in efficient switching core to implement flow control and reduce broadcast packets

    2. Standard Compliance:IEEE802.3 ad, link aggregation protocol

        IEEE 802.3, 10BASE-T Ethernet

        IEEE 802.3u, fast Ethernet standard

        IEEE, 802.3ab, Gigabit Ethernet standard

        IEEE, 802.3z, Gigabit Ethernet optical fiber standard

        IEEE, 802.3ae, 10G Ethernet standard

        IEEE, 802.3x, full duplex Ethernet data link layer flow control

        IEEE, 802.3az, EEE energy-efficient Ethernet standards

        IEEE, 802.1AB, LLDP protocol

        IEEE, 802.1D, STP protocol

        IEEE, 802.1Q, VLAN standards

    3. Store-and-forward mechanism is employed to avoid packet loss and error frames

    4. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices

    5. Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping,

    6. DHCP Snooping, LLDP, PoE+ management, IP Source Guard, ARP inspection, ACLs etc.

    7. Support spanning tree STP (802.1D) and RSTP (802.1W).

    8. G.8032, support <50ms industrial quick ring protection

    9. Jumbo frames support a maximum of 9.6K kilobtyes

    10. Support cable diagnosis

    11. Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.

    12. -20 ºC To 70 ºC operating temperature to meet a variety of complex environments

    13. Copper ports support ESD protection

PoE Switch For Ip Camera

Managed Ethernet Switch Instruction:

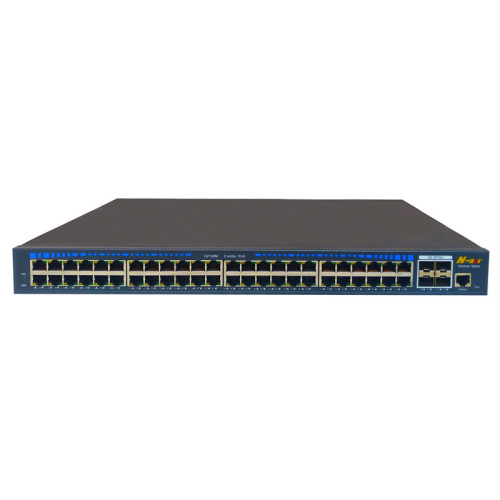

1. Front board have 53 ports, Provide 48x 10/100/1000Mbps downlink Ethernet Ports, 4x 10G uplink SFP+ Ports,

and 1x console ports.

2. LED Indicator State:

PWR:  1 Green light indicates that the power normal work;

SFP+: 4xblue lights indicate that the SFP+ ports is enable

SYS:   1 Green lights indicate system status.

Ethernet: 48 yellow lights indicate 10/100M Ethernet link and speed;

Ethernet: 48 Green lights indicate 10/100M/1000M Ethernet link and speed;

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. 10G Ethernet Switch                 1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 48 network cables to connect 48 IP cameras with Ethernet switch's 1~48 port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Connect the power outlet and the switch with the power cord.

◆ Make sure every network device has power supply and work normally.
