Gigabit 8 Port PoE Switch Managed With LCD

N-net Gigabit 8 Port PoE Switch Managed With LCD

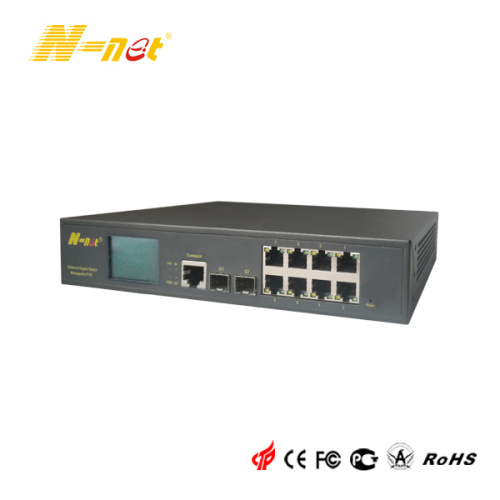

NT-35MG8T2GFL-AF8 LCD Gigabit POE Switch is a L2 managed PoE switch that equiped with 8*1000M Ethernet PoE ports and 2*1000M SFP uplink ports. This gigabit PoE switch is also designed with LCD display function, in this way, people are able to know the switch's working status on the screen such as each port's power output, the PoE situation, power supply overvoltage or lowcoltage and so on. It is an ideal solution for applications of wireless AP, IP phones, IP cameras, and IP HDMI TV-Wall of digital signage. And the overall network management is enhanced to meet the network efficiency and to accommodate high bandwidth applications.

Managed POE Switch 8 Ports Features

1. 8 10/100/1000M ports and 2 10/100/1000Mbps SFP ports

2. Compatible with IEEE 802.3, IEEE, 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.1D(STP) , IEEE802.1W(RSTP) ,IEEE802.3af/at standards.

3. Support for managing each POE port (optional) through network management software, and support advanced POE Auto check function, POE (optional) power, maximum output power of
   250W, each port provides up to 15.4W/30W output power

4. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices

   Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMPSnooping,

   DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.

5. Store-and-forward mechanism is employed to avoid packet loss and error frames

6. Support packet length up to 1536 Bytes.

7. G.8032, support <50ms industrial quick ring protection

8. working temperature: 0 ℃ ~ +70 ℃ and power input (220VAC)

Gigabit Managed POE Switch Web Managed Page

POE Switch 8 Port Info
