Web Managed Fast Industrial Ethernet POE Switch

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF, FCA

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Shanghai, Beijing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000pcs/day
Supply Ability:	5000pcs around 10-20 days
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF,FCA
Certificate:	CE, FCC
HS Code:	8536700000
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Shanghai,Beijing

Product Description

N-net Web Management Industrial Switch

Managed switches support the SNMP protocol.

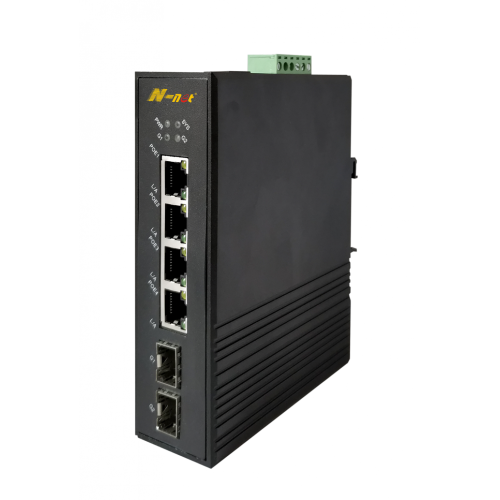

N-net NT-INM1042GF-AF4 is Web Management Industrial Switch with 2 4 POE 100Base-TX ports up to 2 Gigabit Ethernet 1000Base-X SFP ports.

The SNMP protocol is composed of a set of simple network communication specifications.

It is a industrial managed and redundancy Ethernet POE switch, supporting standerd IEEE802.3AF and IEEE802.3AT. This switch also supports POE-auto-check fuction.

It can complete all basic network management tasks, has little demand for network resources, and has some security mechanisms.

This is auto reboot poe power supply when the PD equipment are frozen.

The working mechanism of the SNMP protocol is very simple, mainly through a variety of different types of messages, that is, PDU (protocol data unit) to achieve the exchange of network information.

However, managed switches are much more expensive than unmanaged switches described below. [1]
Used to track traffic and sessions

industrial design: -40℃~+80℃ working temperature and redundant power input, IP40 level, according with the requirements of the EMC industrial level 4, DIN-Rail mounting or wall mounting, support redundant ring network (Recovery time<20ms), RSTP, STP and MSTP protocol, satisfied the reliable and practical requirement of industrial control for network system, the reliable hardware design is specially used for industrial communication continuous running.

Web Management Industrial Switch Features

1. Industrial Ethernet Switch series, design for hard and strict environment.

2. Support CLI, fast configure main managed function

3. Support IEEE 1588 PTP V2, achieve precise network time synchronization.

4. Standard Compliance:IEEE802.3 10Base-T, IEEE802.3u 100Base-T, IEEE802.3ab 1000Base-T, IEEE802.3x Flow Control, IEEE802.1Q, IEEE802.1p, IEEE802.3at PSE

5. Support POE power supply up to maximum of 60W for single port

6. DHCP Option 82 use different IP address.

7. Support N-NET patent protocol [NT-Ring" (Recover time<15ms), STP RSTP, MSTP, Ethernet redundant.

8. Support static and dynamic IGMP, GMRP

9. Support VLAN, IEE 802.1Q VLAN and GVRP protocol, simple network plan

10. Support port Mirroring

11. Support Ethernet/IP and Modbus/TCP protocol, use for managed and control device

12. Support IP Multicast and broadcast storm control

13. Bandwidth management: support Ethernet channel, speed and broadcast storm limitation

14. Support Qos and Tos/DiffServ, Use for flow control and management

15. Support Link Aggregation, improving bandwidth availability.

16. This Industrial Ethernet switch Support SNMPv3, IEEE802.1X, HTTPS and SSH, increase network security

17. Support SNMPv1/v2c/v3 different security level network management

18. Support TACACS+

19. Adopt RMON, efficiently improve network monitoring and forecasting ability

20. Adopt bandwidth management, to ensure stable network

21. Support MAC address port lock, defending illegal invasion.

22. By email and relay output, Achieve auto alarm

23. Support restart and recover default configuration

Web Management Industrial Switch Specification

Technical parameter	Standard: IEEE802.3 10Base-T, IEEE802.3u 100Base-T, IEEE802.3ab 1000Base-T, IEEE802.1Q, IEEE802.1p, IEEE802.3at PSE Protocol: ARP, ICMP, TCP, UDP, DHCP, DNS, HTTP, Telnet, RSTP, SNMP Follow control: IEEE802.3x follow control, Back Pressure
function	Switch function: NT-Ring.RSTP.SNMP.QOS.802.1Q VLAN, TRUNK, Bandwidth management, broadcast storm, online update, upload and download configuration file, user entry system and so on. NT-Ring: support Single, couple, Chain, Dual homing ring network structure
Port	RJ45 port: 4 10Base-T/100Base-TX Fiber port: 2 1000Base-X SFP Serial port: 1 channel RS-232, Baud rate 57600bps
Distance	category-5 twisted pairs:100M (CAT5/CAT5e) multi-mode:1310nm, 2KM single-mode: 1310nm:20/40/60Km. 1550nm:20/40/60/80/100/120Km
Switching	MB switch speed: 148810pps. GB switch speed:1488100pps MB maximum super superficialfacevelocity: 148810pps. GB maximum superficialfacevelocity:1488100pps Transmission mode: store-and-forward, System bandwidth:5.6G MAC: 8K. Buffer:1Mbit
LED indicator	System indicator: SYS Port indicator: Green lights 100M, otherwise 10M, and yellow light mean link-up, yellow light and glitter means link-up, sending and receiving data. Otherwise link-down.
Power supply	Input voltage: 48~56VDC Input mode: plug type 6 core 5.08mm, gap wiring terminal. Support redundant power
Power consumption	<10W
Working environment	Working temperature:-40~80℃. Storage Temperature:-40~85℃ Shell: IP40 level, crimped and strong metal shell. Installation: DIN-Rail mounting or wall mounting.
