AC DC adapter 36v 3a power adaptor

USD9.2

≥100 Piece/Pieces

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 9 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	150000
Supply Ability:	150000
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA
Certificate:	CE ROHS FCC
HS Code:	8504401300
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

AC DC Power Adapter 36v 3a power adaptor

The 36v Switching Power Supply is 100-240V Wide voltage output voltage: Standby power consumption: less than 0.5W. White box packaging. The warranty of our Switching Power Supply is 1 year.

Features:

l Universal AC input/Full range(up to 264Vac)

l Protection: Short circuit/Overload/Over temperature

l Cooling by free air convection or fan inside

l High efficiency, long life and high reliability

l 100% full load burn-in test

l Fixed switching frequency at 75KHz and 55 KHz

l 12 months warranty

Applications:

l Sounds audio

l Electronic instruments

l power amplifier equipment

Product Description:

Model No:PC-360030

AC input: 100-240Vac, 50/60HZ

DC voltage: 36V

Rated current: 3A

Rated power: 108W

Dimension: 145*90*45MM

Ripple & Noise: <360mVp-p

Voltage tolerance: ±5%

Line Regulation: ±1%

Load Regulation: ±5%

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto relstart when the fault condition is removed.

Over Current protection: 130%-150%

Over Voltage protection: 115%-135%

Operation Temperature: -10-50℃ (±10℃)

Storage Temperature: -40-80℃ (±10℃)

DC connector: 5.5*2.1mm/5.5*2.5mm, 4PIN PCIE-6PIN connector

AC Power Cord: 0.9M,1.2M/1.5M(Customized Available)

AC Power Cord: 1.2M ac cable with UK/AU/USA/EU/India plugs

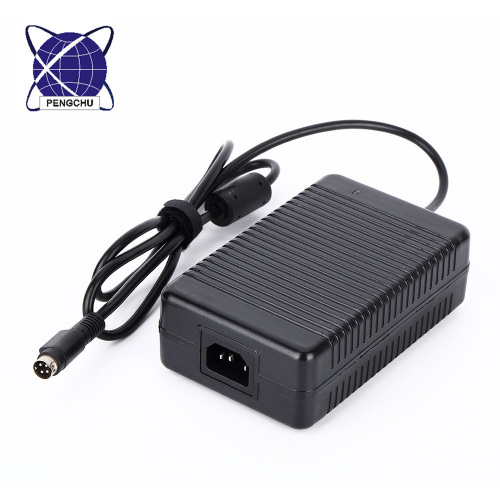

Product Images:
