ac-230v power supply adapter 36v 11a 400w

ac-230v power supply adapter 36v 11a 400w

Connect this unit to 110 or 220 Volts AC household power and it will supply 400 Watts of power at 36 volts DC,( 54007275,11 Amps). Use this power supply to operate motors, LED lights, and other applications requiring DC power from ordinary AC household current.Every power supply goes through a full-load burn-in test so no defective unit leaves the factory. The power supply shuts down temporarily if the temperature, current, or voltage go beyond the safe operating range. And short-circuit and overload protections help these units survive harsh operating conditions.

Product specifications:

Model NO.:PC-360110

AC Input:100~240V AC 50/60Hz  Max:90~264V AC 47/63Hz

DC Voltage: 36V

Rate Current: 11A

Current Range:0~11A

Rate Power: 400W

Material:100% PC

Certification:Approved CE ROHS FCC certifications

Rippe & Noise:<360MVP-P

Voltage Tolerance:±5%

Line Regulation:±1%

Load Regulation:±5%

Efficiency:>88%

PFC: >0.99

Short Circuit Protection:Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.

Over Current Protection:130%~150%

Over Voltage Protection:115%~135%

Operating Temperature:-10℃~50℃(±10℃)

Relative Humidity:20%~90% RH

Storage Temperature:-40℃~80℃(±10℃)

DC Connector: 3PIN,4PIN...can be customized

DC Power Cord: 0.5M, 0.6M, 0.8M, 0.9M,(Customized available)

AC Power Cord:1.2m AC Power Cable with USA/UK/EU/AU/India Plugs(Customized available)

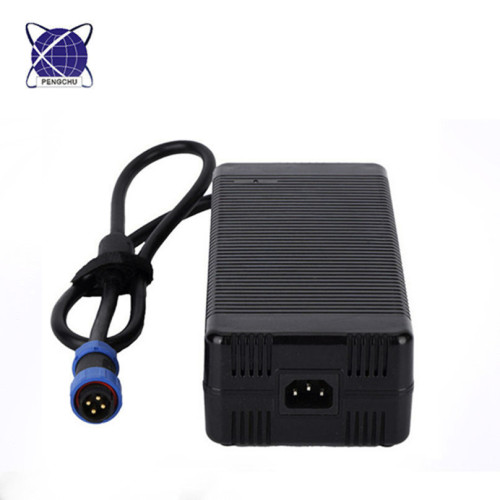

Product show:

Why Choose US:

• Professional team for after-sale service 7*24
• 11 years Alibaba Gold supplier
• Experienced R & D team and profesional sales team
• OEM & ODM service, we will evaluate, design and produce your customized products
• Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.

Trade Term:

• Payment term: PayPal, Western Union, T/T
• Leading time:7-9  working days
• Sample: 3-5 working days after payment confirmed
• Freight cost: Customers's shipping agent or our forwarder
• Shipping port: Shenzhen, China

FAQ:

   Q1: WAHT'S YOUR MOQ:

    A1: Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units

    Q2:  WHAT'S YOUR WARRANTY?

    A2:  One year warranty.

    Q3:  HOW ABOUT THE LEADING TIME?

    A3:  For samples, leading time is 3-5 working days.

           For mass cargo, leading time will be 7-9 working days

    Q4: CAN WE PRINT OUR LOGO?

    A4: The logo can be printed on the adapter label or package.

    Q5: WHY IS NEW MODEL EXPENSIVE THAN OLD MODELS/

    A5: New models needs R & D cost and mould cost, the depletion rate is big during mould and production.

           That is say that new  model is low productive but labor cost keep same as old model.
