Switching Power Supply 12V Dual Power Supply

Switching Power Supply 12V Dual Power Supply

This dual power adapter is input 100-240v 50-60hz ac to output dc 12v 3a 5v 2a .It has a cooling fan inside to reduce the high temperature,This ac dc power adapter have Short Circuit Protection ,Over Current Protection,Over Voltage Protection,Over Temperature Protection.,and ac adapter have high efficiency >88%.

Product Description:

Part NO.: 12V 3A 5V 2A

DC Voltage:12V/5V

Rate Current:3A/2A

Current range:0~3A/2A

Rate power:46W

Voltage tolerance:±5%

Line Regulation:±1%

Load Regulation:±5%

AC Input:100~240Vac 50/60Hz max: 90~264Vac 47/63Hz

Efficiency:>88%

Short Circuit Protection: Shall be protected when any output operation in circuit short condition,and shall be auto restart

when  the fault condition is removed.

Over Current Protection:130%-150%

Over Voltage Protection:115%-135%

Operating Temperature:-10-50ºC (±10ºC)

Relative Humidity:20%-90% RH

Storage Temperature:-40-80ºC (±10ºC)

DC Connector:5.5*2.5,2.5*2.1mm connector (Customized Available)

DC Cable:1.2m/1.5m/1.8m(Customized Available)

AC Cable:1.2m ac power cord with USA/UK/EU/AU/India plugs

Features:

• Universal AC input/Full range(up to 264Vac)
• Protection: Short circuit/Overload/Over temperature
• High efficiency, long life and hign reliaility
• 100% full load burn-in test
• Two years warranty
• Class 1 design

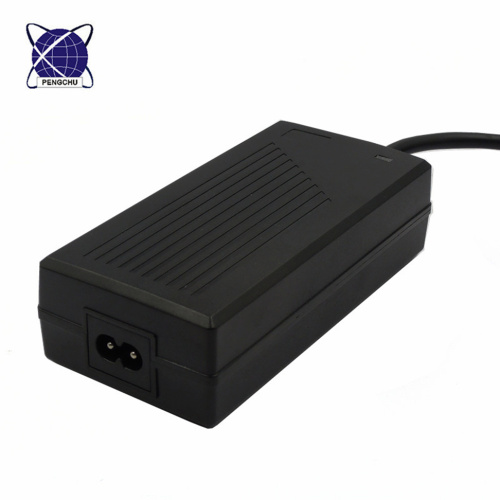

Product show:
