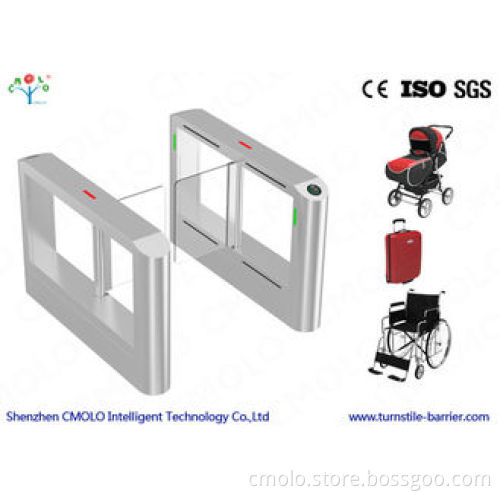

Security Speed Gate Turnstile

Technical Parameter:

● Machinery Mechanism: MTHTTM Lossless mechanism
● Housing Dimension: 1600×200×990mm
● Swing gate material: Organic glass (default); tempered glass (optional)
● Housing Material: 304 grade stainless steel
●Power and Voltage: 100-240VAC, 50/60HZ
● Operation Voltage: DC 24V
● Controlling Method of Motor: DSP
● Communication Interface: RS485 / RS232 (default); TCP/IP (optional)
● Humidity: 0~95% (non-condensation)
● Positioning Method: Encoder
● Working Environment: Indoors
● Control Input / Output: 8 channels dry contact signal input / 12 channels relay control output

Custom-made Feature:

Customized Functions
● Built-in or external counter
● TCP / IP communication

Lane width
● The lane width can be custom-made as larger size, and the maximum can be 900mm, but the length might need to be changed accordingly.

Materials
● The material of housing can be 316 grade stainless steel,and the thickness of stainless steel can be customized.
● The material of swing gate can be organic glass, tempered glass, polycarbonate board and so on, and the color can be customized.

Door open button
● External door open button.
● Install the door open button with wireless remote control.

System Integration
● Integrate with access control system and built-in reader provided by customers.
● Integrate with visitor access control system.
● Integrate with ticketing system.

Security Design:
Self-check function when power on:The system will self-check routinely and alarm when the power is on,and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!
Open gate when the power is failure: Adopt the leading mechanical structureby original creation; the system will unlock the gate automatically when power is off; manually push the gate to be open and convenient to evacuate people, which meets the fire requirement.
Anti-clamping function:
(1)Anti-pinch by infrared sensor: Install multi-pair of infrared sensors near the anti-pinch area where swing gate is moving. Once people or thing is detected within the anti-pinch area, the swing gate will automatically stop moving; until the people or thing leaves the anti-pinch area, the swing gate will continue to move.
(2)Mechanical anti-pinch: The swing gate will automatically stop moving when the swing gate encounter obstacles; the impulse force is within the safety range when the swing gate is moving.

Application:
● Commercial buildings
● Subways
● Airports
● Customs
● Exhibition halls
● Government buildings
● Financial institutions
● Clubs
