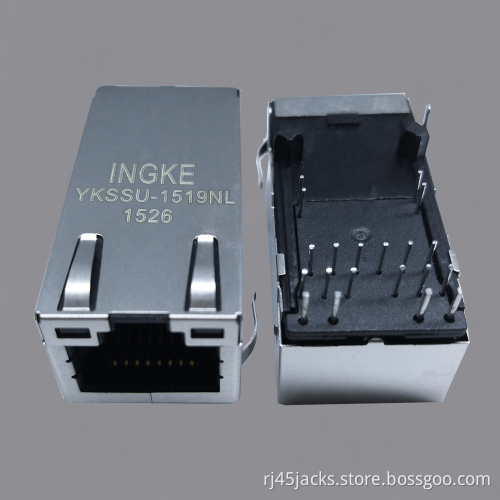

Ingke YKSSU-1519NL 2.5G Base-T, Power over Ethernet+ (PoE+) RJ45 modular jack

Ingke YKSSU-1519NL 2.5G Base-T, Power over Ethernet+ (PoE+) RJ45 modular jack

Part Number : YKSSU-1519NL

Made in China:YKSSU-1519NL

Original Manufacturer:Ingke Technology

Supply Ability:185K-PCS/Month

Packaging :Tray

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 2.5G Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

Height Above Board: 0.535" (13.59mm)

LED Color: Green,Yello-Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features:  Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material :Thermoplastic

Ingke Technology Mass production of the following models;ARJM11A3-809-AD-CW2  ARJM11B3-809-AB-CW2  ARJM11B3-809-AD-CW2 ARJM11A1-809-NN-EW2 ARJM11B1-809-NN-EW2  ARJM11A1-805-AB-CW2 ARJM11B1-805-AB-CW2 ARJM11A1-805-NN-CW4 ARJM11B1-805-NN-CW4 ARJM11A1-809-NN-CW4 ARJM11B1-809-NN-CW4 ARJM11A1-805-JA-CW2 ARJM11B1-805-JA-CW2 ARJM11A1-809-JA-CW2 ARJM11B1-809-JA-CW2 ARJM11A3-805-JA-CW2 ARJM11B3-805-JA-CW2 ARJM11A3-809-JA-CW2 ARJM11B3-809-JA-CW2 ARJM11A3-805-KB-CW2 ARJM11B3-805-KB-CW2 ARJM11A3-809-KB-CW2 ARJM11B3-809-KB-CW2 ARJM11A1-805-KB-CW2 ARJM11B1-805-KB-CW2
