Ingke YKJD-8226ANL 100% cross J0026D01NL 1Port RJ45 modular jack

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: Any Port of China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5500000 PCS/Month
Supply Ability:	5500000 PCS/Month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	ROSH.REACH.CE.SGS
HS Code:	853670
Transportation:	Ocean,Land,Air
Port:	Any Port of China

Product Description

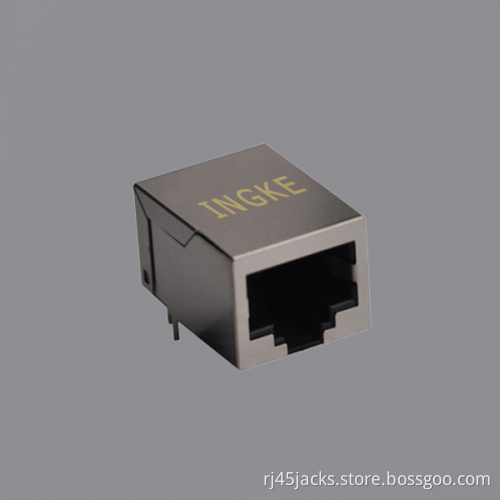

Ingke YKJD-8226ANL 100% cross J0026D01NL 1Port RJ45 modular jack

Part Number: J0026D01NL
Made in China: YKJD-8226ANL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation: 90° Angle (Right)
Termination :Solder
LED Color: No
Number of Cores per Jack : 4
Shielding : Shielded
Features: Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Flammability Rating: UL 94 V-0
Contact Finish Thickness : 30µin (0.76µm)
Shield Material : Copper Alloy
Housing Material :Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;
J0035D21B J0048D21M J0073D01B J0C-0004 J0C-0006 J1006F01P J1006F21 J1012F01C J1012F21K J1012F21L J1012F21R J1026F01P J20-0017 J20-0019 J2039H3B J2039H3C J2042H3C J3006G21D J3018G21K J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JX0011D21NL JV026I21NLT J1026F01NL J0018D21NL J1012F21RNL L INGKE DESIGN
