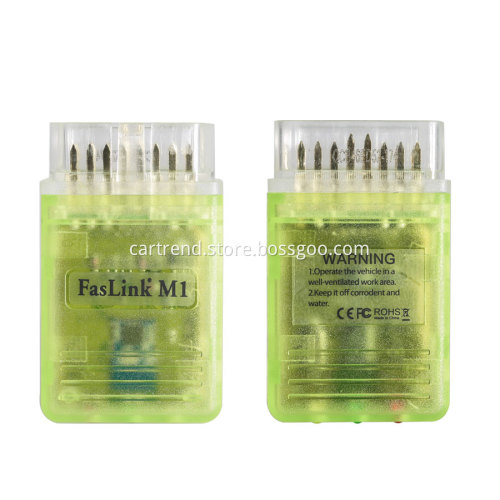

JDiag Faslink M1 Bluetooth OBDII Diagnostic Scanner

JDiag Faslink M1 Bluetooth 4.0 BLE

JDiag FasLink M1 Bluetooth Adapter is an universal diagnostic tool developed by JDiag Electronics Technology Co., Ltd in 06.2017. It is portable, intelligent, highly integrated, multi-functional, and  also compatible with 5 major standard protocols.

JDiag Faslink M1 Features:

1. Applicable to vehicles with standard OBDII DLC after 2000 (OBDII, CAN)
2. Bluetooth 4.0BLE module independent development, the effective distance of 20-30 meters, lighting speed search, lighting speed connection (0.5 seconds)
3. Gilded OBDII pins to ensure the stable connection, faster data transfer, never rust
4. Shell with environmentally friendly materials, anti-drop dust-proof scratch, no screws, double-buckle design, bite more solid
5. Compatible with more protocols,and a wider range of baud rates, support more vehicles
6. LED indicator, real-time obtaining test status, data interaction status and Bluetooth connection status
7. Electroless Nickel/Immersion Gold(ENIG) process PCB, to increase the stability of components, effectively prevent oxidation
8. Optional connection: WIFI, Bluetooth 2.0, Bluetooth 4.0
9. English metric units are interchangeable
10. Built-in user manual, environmental-friendly

Language:

Multi-language: English, Chinese, Japanese, German, French, Italian, Russian, Portuguese, Spanish
Note: More languages will be available soon

Update:

Automatic update- JDiag will submit the update app to WeChat, everytime you open the program, automatically updated within 2 seconds

Registration/Activation:

Quick registration ,through the internal APP via Wechat (scan QR code), complete the registration / activation of products
No need to fill in information

JDiag Faslink M1 Software:

Support original software
Support any OS (Android, IOS),  internal APP developed via a WeChat program

JDiag Faslink M1 Functions:

1. Read/clear vehicle fault code, standard fault codes, brands codes (stored fault code and the pending fault code)
2. Read the vehicle data stream, custom data stream, data stream entry custom sort (PID entries up to 200 or more)
3. I/M Readiness function, ready test the function, real-time monitoring of the car as many as 14 kinds of sensor indicators, quickly determine the vehicle status
4. TPMS reset
5. Service reset
6. Battery test function, detection of car battery life and provide advice
7. Vehicle VIN code read
8. Vehicle protocol read
9. Vehicle calibration ID identification
10. Vehicle calibration verification code read
11. Vehicle protocol ID read
12. GPS positioning
13.User Center: users can manage their own full range of products from JDiag
14. Fast feedback: users do not need to enter the feedback information, just press send then send feedback report

Why use JDiag Faslink M1 via WeChat?

1. No need to install any APPs: as long as your smart phone installed WeChat program, you can use JDiag FasLink M1
2. No phone brands or operating system limitation, Android, IOS, Windows Phone, etc. all available
3. No need update the software: JDiag will submit the update app to WeChat, everytime you open the program, automatically update within 2 seconds
4. No need to print the diagnostic results: WeChat users can share the testing results directly to frends

Product Packaging Features:

1. Product package: packed with recyclable materials, environmental-friendly, dust-proof, water-proof by thermal film packaging
2. Product development: UV printing technology, high-end novel
3. Product logo: bronzing technology
4. FasLink M1: environmentally friendly EVA cotton protection, anti-drop shock
5. Product external use of, effective moisture, dust, water
6. Product box: damping 3-6 seconds automatically fall
7. Box size: 120mm x 80mm x30mm, mobile phone box packaging standards, simple design, generous, lightweight
8. Weight: 0.13KG

Technical Parameters:

Support Protocols: ISO9141-2, ISO14230-4, KWP 15765-4, SAE J1850 VPW, SAE J1850-PWM
Minimum starting voltage: 7.9V
Maximum operating voltage: 30V
Working temperature: -20 ℃ ~ 40 ℃
Storage temperature: -30 ℃ ~ 70 ℃
Working current: 0.24A

Package includes:

1pc x  JDiag Faslink M1 Bluetooth 4.0
