1 inch 4Ohm 2W circular mini Speaker Driver
-
$0.822000-2999 Piece/Pieces
-
$0.793000-4999 Piece/Pieces
-
$0.59≥5000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|---|
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express |

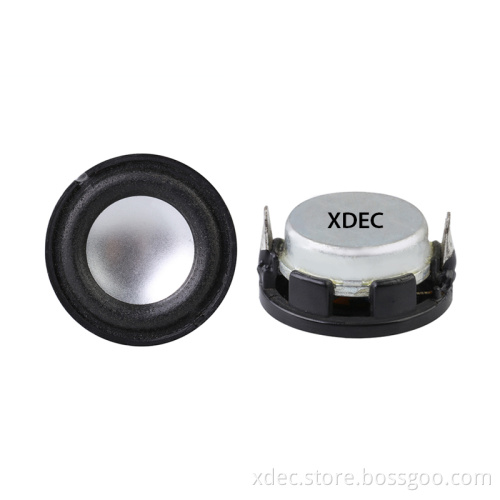

1 inch 4Ohm 2W circular mini Speaker Driver
This is a mini full range multimedia speaker,1 inch 24mm speaker 4ohm 2w speaker.Our this 24mm speaker is made of hard coated white paper cone,waterproof,class can be IP34.Built with high efficient neodymium magnet,4ohm 2w power,can have a crystal sound.Injection basket can support whole body,make sound can show a fullrange sound.Our XDEC deisgn this speaker for 10 years,for now have over 1000 types of speakers and rich experience,our speaker are widely used in Bluetooth speaker,learning machine speakers,Multimedia Speakers. Our XDEC is a professional speaker mnaufacturer for 10 years, mainly design and produce vibration speaker, headphone speaker driver, tablet speaker unit, multimedia speaker unit, soundbox speaker,Mylar Speaker etc.Welcome OEM ODM sound produce and provide sound solution for you !
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|
24*12.2H mm
|
|
|
2
|
Nomial Impedance
|
4±15% OHM
|
At 1.0KHz / 0.63V
|
|
3
|
Input power
|
Rated:2.0W/ Max：2.5W
|
At 2.83V /3.16V
|
|
4
|
Resonance Frequency
|
400±20%Hz
|
At0.63V
|
|
5
|
S．P．L．
|
86±3 dB(0.1W/0.1M)
|
At0.8K/1.0K/1.2K/1.5KHz (Average)
|
|
6
|

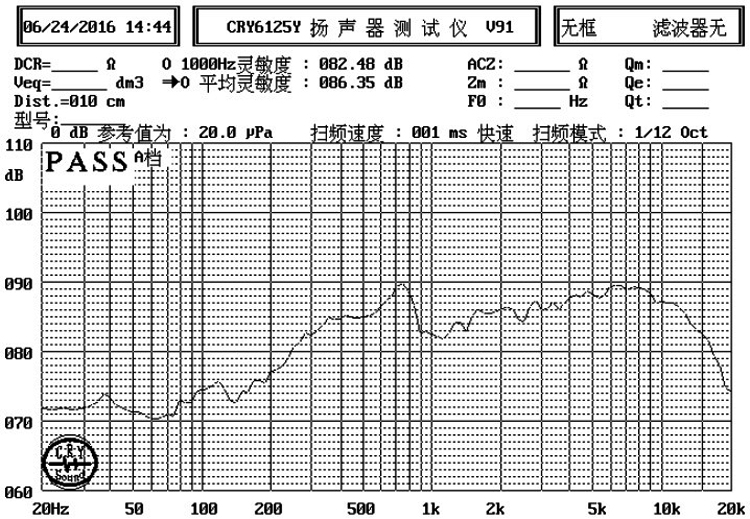

Frepuency Range
|
F0~19K
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 0.1W/0.1M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at2.83V /150~3KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:white noise 48 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of
+60 ℃ 20~25% R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of
－25℃ ±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speak shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤2~3sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +60℃
|
|

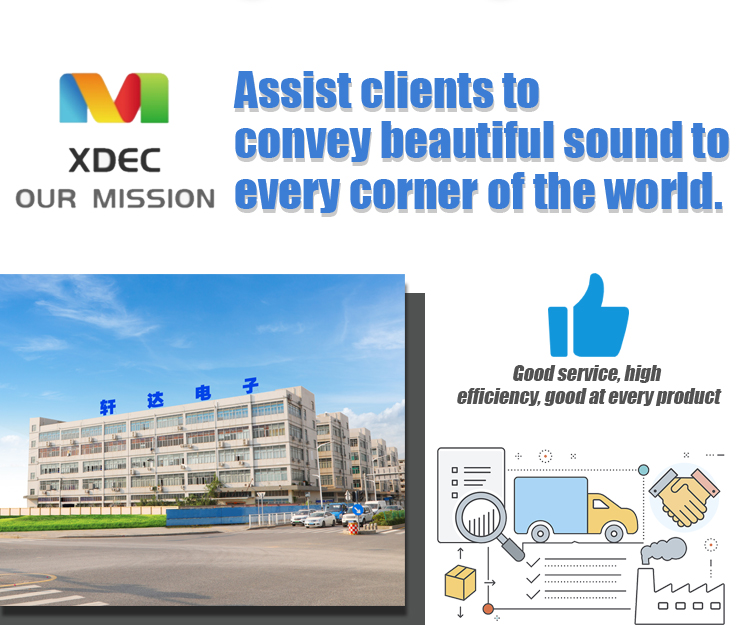

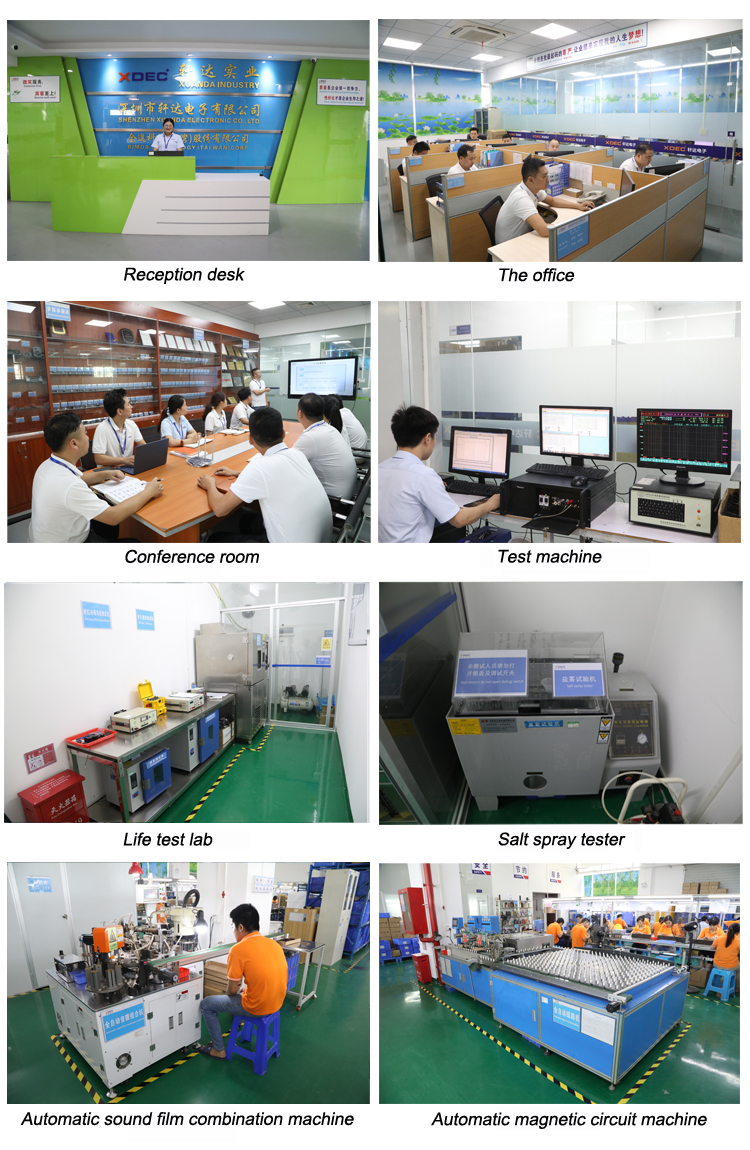

Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone,tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.

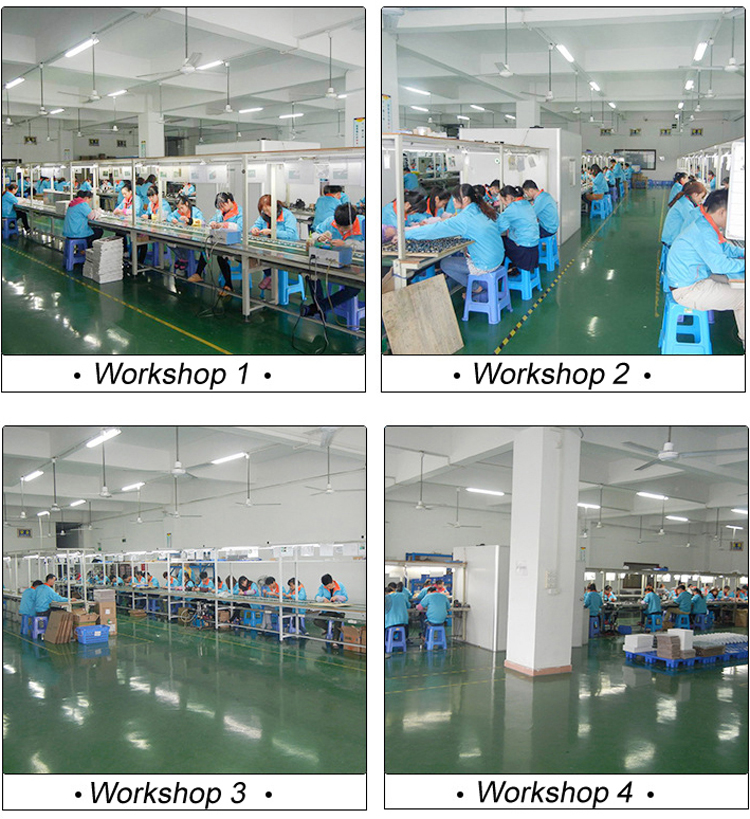

XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’
demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.

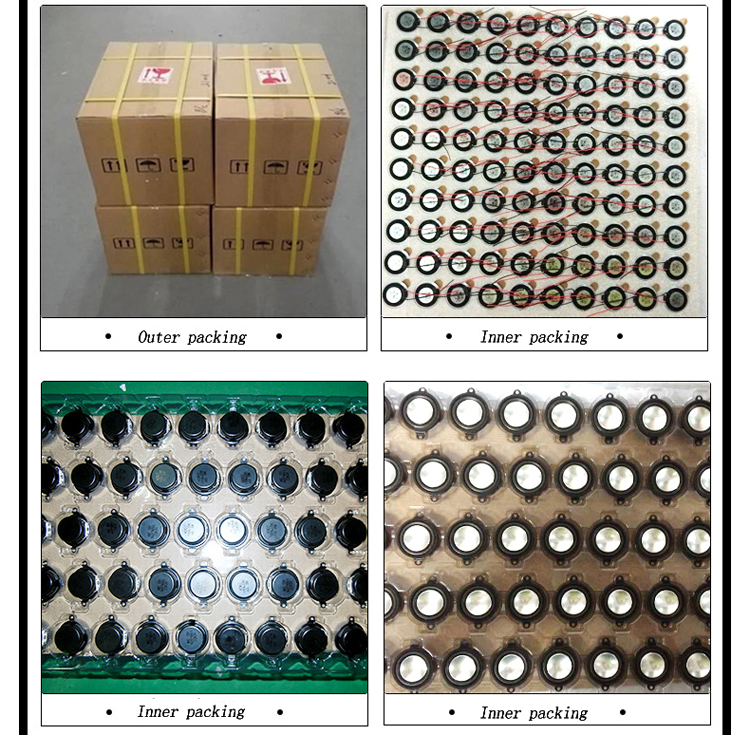

Inner packing: EPE foam, Styrofoam or Blister packaging
Outer packing: Master carton
Delivery time: 15 days for normal orders, 10 days for urgent orders.
Delivery method: by express, by air or by sea.
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q4. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q5. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q6. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
