Quick reply 94.5X55.5X75mm 4Ohm 5W soundbox speaker
-
$2.592000-2999 Piece/Pieces
-
$2.493000-4999 Piece/Pieces
-
$2.39≥5000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T |
|---|---|
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express |
Product Description
Product Description

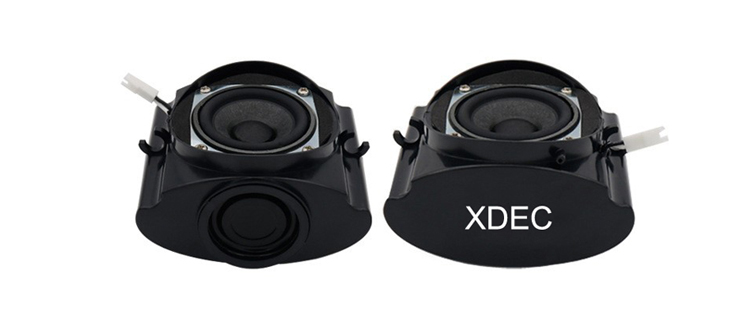

Quick reply 94.5X55.5X75mm 4Ohm 5W soundbox speaker
ODM OEM factory 94.5*55.5*75mm 4ohm 5w soundbox speaker
1.94.5*55.5mm cylindrical soundbox speaker,with 75mm height,rms 5w,Max 6W,4ohm.
2.Neodymium magnet,high strong motor material,use time longer,wires and connectors are avalieble.
3.Made of high class spider,16mm voice coil,heat resistant lead wires.
4.High directivity,flat assemble,flat audio exciter.
360 degree all direction sound, high HIFI,besides this vibration speaker, our XDEC speaker also have headphone speaker driver,tablet speaker unit, multimedia speaker unit, soundbox speaker,mylar speaker these series speaker types, total over 1200 type of speaker models for you choose.
Product Specification
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|
Φ94.5*55.5*75Hmm
|
|
|
2
|
Nomial Impedance
|
4±15% OHM
|
DCR 3.6±15%Ω
|
|
3
|
Input power
|
Rated：5W/ Max：6W
|
At 4.47V /4.89V
|
|

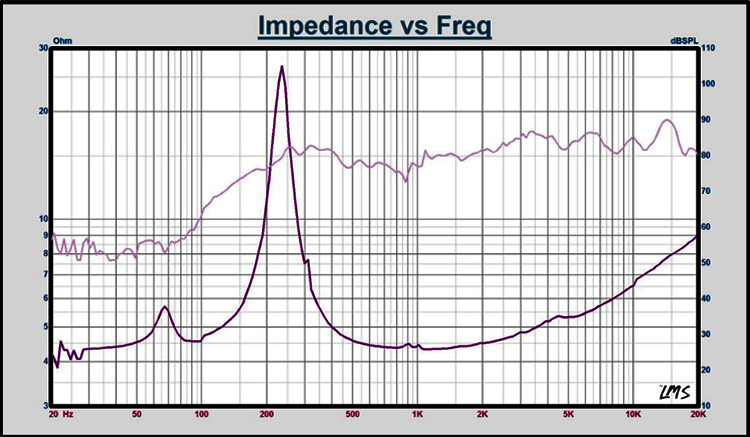

4
|
Resonance Frequency
|
F0 :230±20%Hz
Fb： 90±20%Hz
|
At1.0V
|
|
5
|
S．P．L．
|
78±3 dB(0.5W/0.5M)
|
At0.4K/0.6K/1.2K/1.5KHz (Average)
|
|
6
|
Frepuency Range
|
F0~20K
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 0.5W/0.5M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at 4.47V /F0~5KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:white noise 48 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of +60 ℃ 20~25%R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of －25℃±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of +40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speak shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤2~3sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +60℃
|
|
All the above parameters can be adjusted or customized according to customer requirements.
Our Company
Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone, tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.
XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’ demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better service in order to create the rapid development together with all friends.

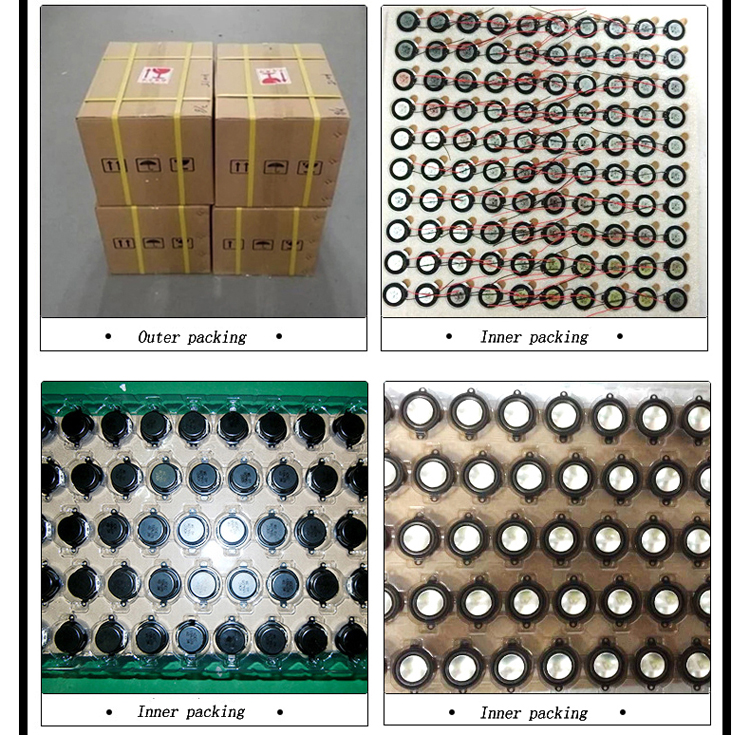

Packing & Delivery
Inner packing: EPE foam, Styrofoam or Blister packaging
Outer packing: Master carton
Transport
Delivery time: 15 days for normal orders, 10 days for urgent orders.
Delivery method: by express, by air or by sea.
FAQ
Q1. What is the MOQ?
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What is the delivery time?
XDEC: 15 days for normal orders, 10 days for urgent orders.
Q4. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q5. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q6. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q7. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
