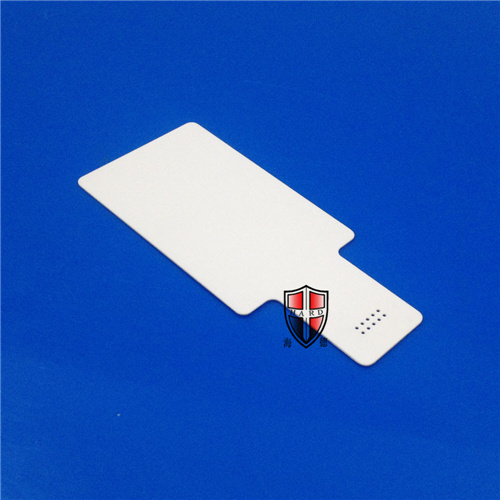

high precision scribing ceramic substrate sheet thin plate

high precision scribing ceramic substrate sheet thin plate

Reputation depends on quality,  quality comes from Hard!

Ceramic Substrate:

LTCC (Low-Temperature Co-fired Ceramic) High Precision Scribing Ceramic Substrate Sheet Thin Plate High Precision Scribing Ceramic Substrate Sheet Thin Plate
LTCC is also known as low-temperature co-fired Machinable Glass Ceramic Bar multi-layer ceramic substrate. This technology requires first adding inorganic alumina powder and about 30% to 50% of glass material to organic binder to make it into a slurry. The scraper is used to scrape the slurry into a sheet shape, and then the sheet-like slurry is formed into a thin piece of green embryo through a drying process, and then the through hole is drilled according to the design of each layer, as the signal transmission of each layer, the internal circuit of the LTCC The screen printing technology is used to fill Machinable Glass Ceramic Bar and print the lines on the raw embryos. The inner High Precision Scribing Ceramic Substrate Sheet Thin Plate and outer electrodes can be respectively made of silver, copper, gold and other metals. Finally, the layers are laminated and placed at 850~900 °C. Sintering in a sintering furnace can be completed.

Application:

The role of ceramic substrate ceramic substrate according to the field of ceramic substrate application, is divided into HIC (hybrid integrated circuit) ceramic substrate, focusing potentiometer ceramic substrate, laser heating fixing ceramic substrate, chip resistor substrate, Network resistor substrate, etc.; according to different processing methods, ceramic substrates are divided into two types: molded tablets and laser scribe films. The ceramic substrate in the chip resistor substrate is a part of the chip resistor. The upper layer of the substrate is coated with different semiconductor materials, and then copper is plated on both ends for soldering. The biggest advantage of the whole resistor is that the volume can be made very well. small.

Company Information:

Shenzhen Hard Precision Ceramic CO.,Ltd founded in 2007, located in Shenzhen of China. We are a company that integrates development, design, molding, sintering, production and sales of precision ceramic products. After 10 years of development, we have cooperated with more than 2000 customers and 60 universities; Our factory covers an area of 2000 square meters, 50 employees, and annual production value of nearly 20 million. We have a higher visibility and better reputation in the same industry.Our products include ceramic rods, tubes, plates, blocks and precision parts for industrial. We have all-line high precision equipments from ceramic forming, sintering to precision machining. Hope for a wide range of sincere cooperation with customers at home and abroad.

7.MOQ is not limited, small quantity is welcome.

8.Vigorous team and good after-sales service

Products Show

Factory Show

Our Team

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
