16mm Dc Geared Motor

USD10

5-999 Piece/Pieces
USD5

1000-9999 Piece/Pieces
USD4.8

≥10000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, HongKong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	2000000pcs annual
Supply Ability:	200000pcs per month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE, Rohs, Iso 9001
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,HongKong

Product Description

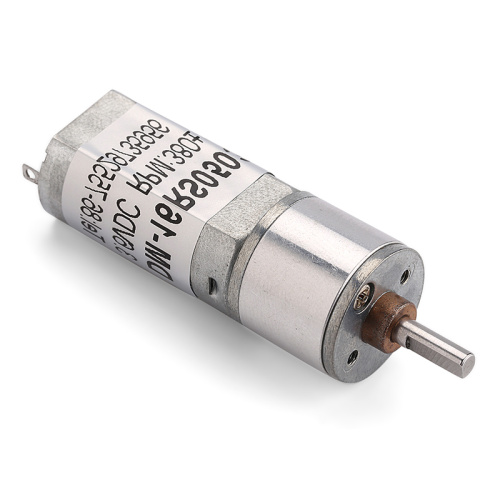

DM-16RS050 16mm Dc Geared Motor

DM-16RS050 16mm dc gearbox motor with encoder is the upgrated power version to DM-16RS030 24v dc electric geared motor. Both smart geared motors shared the same specification gearbox, the difference is the metal brushed dc motor used. DM-050# 16mm metal brushed dc motor is longer and powerful than DM-030# small dc motor. Customer can choose them freely to meet their different application torque demand.

16mm dc motor

Main voltage : 3VDC.6VDC.12VDC.24VDC

Typical applications :

Household appliances, Audio-visual products, Office facilities, hairdressing equipment, Medical equipment,

Toys, Electric tool, Automatic sprayer, Intelligent system, Automatic control and other industrial drives.

6v Dc Gear Motor

Gearbox Data :

Number of stages	3	4	5	6	7
Reduction ratio	10.14	23.28.32.40	46.56.65 79.91.112	130.159.183 224.257.315	365.448.515 631.725.889
Gearbox length [L"mm	11	12.5	14	15.5	17
Breaking torque(kgf.cm)	1	2	3	4	4
Gearbox efficiency	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-050-006-9000	6	≤60	9000	≤260	7500	8	0.6	≥30	≥550
DM-050-006-12000	6	≤70	12000	≤300	9300	10	1.0	≥40	≥1000
DM-050-012-9000	12	≤30	9000	≤130	7500	8	0.6	≥30	≥300
DM-050-012-12000	12	≤50	12000	≤200	10000	10	1.0	≥40	≥600

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-16RS05000611400-365K	6.00	0.07	32.2	0.27	25.5	1.20	0.32	5.82	1.04
DM-16RS0500068000-365K	6.00	0.07	23.4	0.26	17.8	1.90	0.35	7.88	0.86
DM-16RS0500088300-46K	8.00	0.02	183.1	0.11	144.6	0.16	0.24	0.76	0.42
DM-16RS05001210500-515K	12.00	0.03	20.0	0.11	15.5	1.30	0.20	5.70	0.35
DM-16RS05001215000-40K	12.00	0.03	376.3	0.16	303.7	0.23	0.73	1.21	0.70
DM-16RS05001216000-315K	12.00	0.07	56.9	0.29	47.2	2.30	1.14	13.70	1.35
DM-16RS05001216000-889K	12.00	0.06	20.4	0.12	13.8	2.16	0.31	6.70	0.25
DM-16RS0500128000-112K	12.00	0.02	70.6	0.07	52.4	0.35	0.19	1.35	0.21
DM-16RS0500128000-448K	12.00	0.02	18.6	0.06	13.4	0.92	0.13	3.32	0.17
DM-16RS0500128000-515K	12.00	0.02	15.9	0.065	12	0.97	0.12	3.93	0.20
DM-16RS0500128000-631K	12.00	0.03	12.2	0.07	8.0	1.43	0.12	4.20	0.15
