20mm 12 volt gear motor
  • 20mm 12 volt gear motor
20mm 12 volt gear motor

20mm 12 volt gear motor

  • USD10
    5-4999 Bag/Bags
  • USD4
    ≥5000 Bag/Bags
Payment Type:
L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm:
FOB, CIF
Min. Order:
5 Bag/Bags
Min. Order:
5 Bag/Bags
Delivery Time:
35 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Hongkong
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 200000pc per month
Supply Ability: 2000000pc annual
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CIF
Certificate: CE, Rohs, FCC
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Shenzhen,Hongkong
Product Description
Product Description

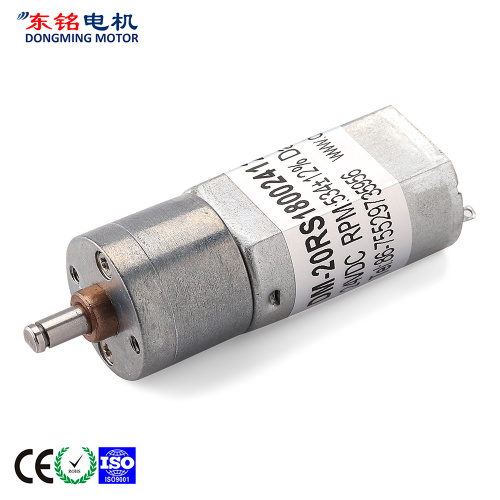

DM-20RS180 DC SPUR GEAR MOTOR

20mm dc spur gear motor mainly includes DM-20RS130 12 Volt Gear Reduction Motor and DM-20RS180 12 Volt Motor with Gearbox.

These 12 Volt Motors Gear Reduction sometimes are used on roller blind. 20mm dc gear motor refers to 20mm dc spur gear motor,

including DM-20RS130 and DM-20RS180 dc motors with gear reduction. Except for roller blind, these dc gear motors are often used on small

medical devices.


12 volt dc motor and gearbox


Main voltage : 3VDC.6VDC.9VDC.12VDC

Typical applications :

Instrument,Electric tool,Automatic door-lock, Medical equipment,Security monitorin,Car lock


12 volt dc motor high rpm

Gearbox Data :

Number of stages

4

5

6

7

8

Reduction ratio

18.23

35.44.55

67.84

105.132

161.202

252.316

386.484

606.758

Gearbox length [L"mm

16.2

17.7

19.2

20.7

22.2

Breaking torque(kgf.cm)

2

4

6

8

8

Gearbox efficiency

65%

59%

53%

48%

43%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-180-006-6000

6

≤65

6000

≤260

5100

15

0.8

≥55

≥1150

DM-180-012-6000

12

≤27

6000

≤150

5100

15

0.8

≥55

≥430

DM-180-012-9000

12

≤80

9000

≤260

7000

20

1.4

≥80

≥1000

DM-180-024-9000

24

≤50

9000

≤150

7800

20

1.6

≥80

≥550



Geared Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-20RS18001211000-55K

12.0

0.09

196.1

0.33

159.2

0.85

1.38

4.5

1.35

DM-20RS1800123000-316K

12.0

0.02

8.1

0.05

5.5

1.86

0.11

5.8

0.10

DM-20RS1800123500-758K

12.0

0.02

4.1

0.06

2.9

2.48

0.08

8.4

0.15

DM-20RS1800128000-484K

12.0

0.06

16.9

0.20

12.9

3.36

0.45

14.2

0.65

DM-20RS1800128000-758K

12.0

0.05

10.8

0.22

8.6

6.12

0.54

29.9

0.90

DM-20RS18001816500-132K

18.0

0.16

123.1

0.66

97.1

3.94

3.93

18.6

2.56

DM-20RS1800247000-252K

24.0

0.02

27.5

0.08

20.9

1.70

0.36

7.0

0.26

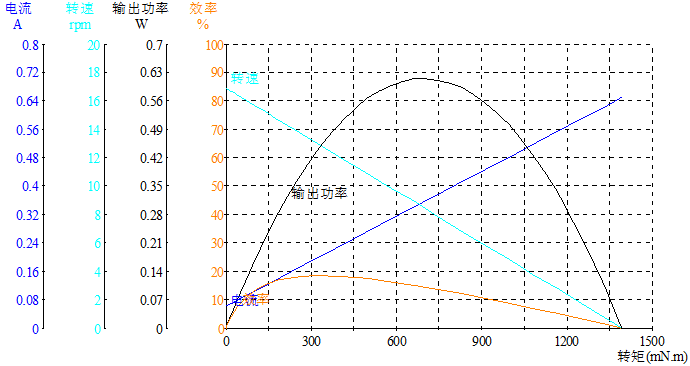

Curve Chart :

Model: DM-20RS1800247000-252K

DM-20RS180-2

Model: DM-20RS1800128000-484K

DM-20RS180-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
