27mm DC Spur Gear Motor

USD10

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

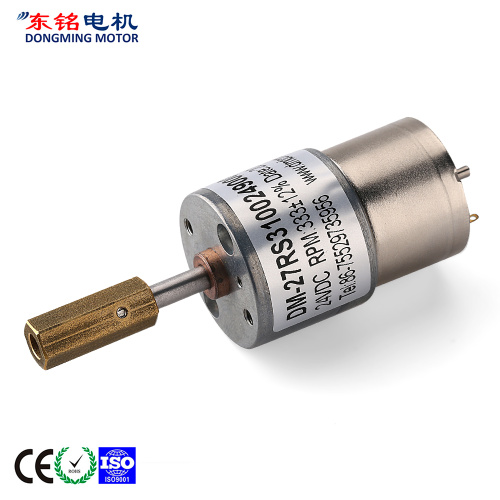

DM-27RS310 DC SPUR GEAR MOTOR

27mm dc spur gear motor mainly includes DM-27RS310 12v Motor with Gearbox and DM-27RS370 12v Motor and Gearbox. These 12v Mini Gear Motor are made of two parts: the micro dc motor part and the gearbox parts. The gearbox part is 27mm diameter. The length of the gearbox is depend on the choosen gear ratios. The larger the gear ratio is, the bigger ratios we choose, and the longer the gearbox is.

gearboxes for electric motors

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

motor gear reduction

Gearbox Data :

Number of stages	4	5	6	7	8
Reduction ratio	19.27	36.52.76	100.145.210	277.402.583	771.1119.1621
Gearbox length [L"mm	18	20	22	24	26
Breaking torque(kgf.cm)	10	12	14	16	16
Gearbox efficiency	65%	59%	53%	48%	43%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-310-006-3000	6	≤20	3000	≤60	2300	5	0.1	≥20	≥135
DM-310-006-4500	6	≤40	4500	≤120	3200	7	0.2	≥28	≥240
DM-310-006-6000	6	≤35	6000	≤140	4500	10	0.5	≥40	≥600
DM-310-012-3000	12	≤15	3000	≤40	2300	5	0.1	≥20	≥70
DM-310-012-4500	12	≤20	4500	≤55	3200	7	0.2	≥28	≥120
DM-310-012-6000	12	≤25	6000	≤100	4500	10	0.5	≥40	≥290

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-27RS3100125000-100K	12	0.028	46.2	0.041	37.4	0.36	0.139	1.9	0.176
DM-27RS3100129200-210K	12	0.07	41.6	0.211	30.1	1.54	0.475	5.6	0.581
