12v 50 rpm dc gear motor

USD10

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Hongkong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Hongkong,Shenzhen

Product Description

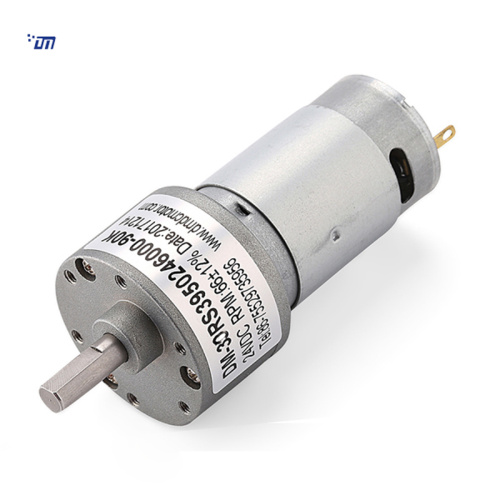

DM-30RS395 12v 50 rpm dc gear motor

DM-30RS395 belongs to dc spur gearbox motor, motor diameter is 30mm. It has two mainly serious via matching with different dc brushed motor. DM-30RS385 mini electric motor gear reducer and DM-30RS395 micro metal gear motor . DM-30RS395 30mm 6v dc gear motor is power upgrated version to DM-30RS385 6v dc motor gearbox, We can customize the motor voltage,speed and shaft length/shape according to different application.

12v geared dc motors

Main voltage :12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

12v geared motors

Gearbox Data :

Number of stages	4	5	6	7	8
Reduction ratio	37	88.114.131	206.265.305 341.392.450	619.711.796 914.1049.1548	1857.2132 2387.2447
Gearbox length [L"mm	22.2	24.8	27.4	30	32.6
Breaking torque(kgf.cm)	10	12	16	20	20
Gearbox efficiency	65%	59%	53%	48%	43%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-395-012-3000	12	≤60	3000	≤250	2200	65	1.5	≥208	≥740
DM-395-012-4500	12	≤90	4500	≤430	3300	80	2.7	≥410	≥1700
DM-395-012-6000	12	≤130	6000	≤750	4800	100	4.9	≥510	≥2800
DM-395-024-3000	24	≤40	3000	≤120	2200	65	1.5	≥220	≥380
DM-395-024-4500	24	≤60	4500	≤220	3300	80	2.7	≥360	≥820
DM-395-024-6000	24	≤80	6000	≤380	4800	100	4.9	≥580	≥1700

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-30RS3950126500-37K	12	0.231	172.2	0.872	133.7	3.3	4.471	14.5	3.1
DM-30RS39502411000-37K	24	0.182	303.8	0.948	245.4	3.8	9.63	19.9	4.163
