33mm DC SPUR GEAR MOTOR

USD10

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Hongkong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Hongkong,Shenzhen

Product Description

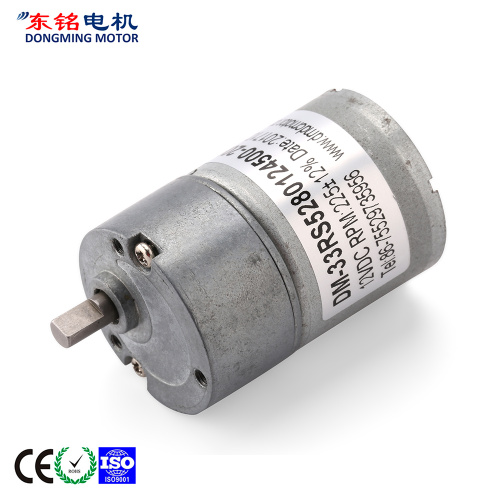

DM-33RS528 DC SPUR GEAR MOTOR

For brushed gear motor, it is sometimes requested a dc 12v 24v encoder gear motor. For this 33mm dc gear motor and other dc gear motor 3v,

we can always work out an encoder solution. For some projects, the space for the motor is limited, this request the motor to be smaller or shorter.

For 33mm dc spur gear motor, if customer request a smaller one, then we can suggest 32mm or 30mm dc spur gear motor.

But if the customer think the diameter is OK, the length should be not more than 80mm, then we can suggest using 520 or 528 dc motor.

16mm dc gear motor

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

DM-33RS528

Gearbox Data :

Number of stages	3	4	5	6	7
Reduction ratio	20	50	125	312.5	781
Gearbox length [L"mm	17.7	19.9	22.2	24.4	26.75
Breaking torque(kgf.cm)	10	15	20	24	24
Gearbox efficiency	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-528-012-3000	12	≤40	3000	≤180	2200	40	0.9	≥160	≥720
DM-528-012-4500	12	≤60	4500	≤350	3300	60	2.0	≥210	≥1400
DM-528-012-6000	12	≤70	6000	≤720	4500	80	3.7	≥300	≥2800
DM-528-024-3000	24	≤15	3000	≤80	2200	40	0.9	≥140	≥320
DM-528-024-4500	24	≤25	4500	≤180	3300	60	2.0	≥210	≥730
DM-528-024-6000	24	≤45	6000	≤360	4500	80	3.7	≥300	≥1400

Geared Motor Samples Data:

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-33RS5280124500-20K	12	0.056	210.2	0.223	173.2	0.6	1.086	3	1.004
DM-33RS5280244000-312.5K	24	0.022	13.1	0.083	9.9	4.7	0.477	19	0.274
