SHENZHEN DONGMING MOTOR CO., LTD.
Products
Products
SHENZHEN DONGMING MOTOR CO., LTD.
12v gear motor high torque
  • 12v gear motor high torque
12v gear motor high torque

12v gear motor high torque

  • USD10
    5-999 Piece/Pieces
  • USD5
    ≥1000 Piece/Pieces
Payment Type:
L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm:
FOB, CIF
Min. Order:
5 Piece/Pieces
Min. Order:
5 Piece/Pieces
Delivery Time:
35 Days
Transportation:
Ocean, Land, Air
Port:
Hongkong, Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 200000pc per month
Supply Ability: 2000000pc annual
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CIF
Certificate: CE, Rohs, FCC
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Hongkong,Shenzhen
Product Description
Product Description

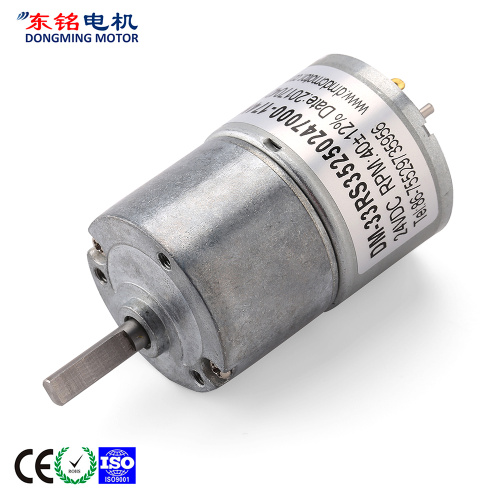

DM-33RS3525 DC SPUR GEAR MOTOR

33mm Dc Gear Motor could be both dc gear motor low rpm and high rpm.

For example, a dc gear motor 5v need a high rpm, then we can use a small gear ration. At this point, the torque is very small.

On the other hand, if we need a dc gear motor high torque 20kg.cm, then we need a very big gear ratio.

Or else we need another bigger gearbox.


Gear motors for robotics


Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment


gear motors manufacturers




Gearbox Data :

Number of stages

3

4

5

6

7

Reduction ratio

20

50

125

312.5

781

Gearbox length [L"mm

17.7

19.9

22.2

24.4

26.75

Breaking torque(kgf.cm)

10

15

20

24

24

Gearbox efficiency

73%

65%

59%

53%

48%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-3525-012-3000

12

≤40

3000

≤170

2200

25

0.6

≥120

≥600

DM-3525-012-4500

12

≤60

4500

≤250

3300

35

1.2

≥180

≥900

DM-3525-012-6000

12

≤100

6000

≤450

4500

45

2.1

≥200

≥1300

DM-3525-024-3000

24

≤25

3000

≤80

2200

25

0.6

≥100

≥300

DM-3525-024-4500

24

≤30

4500

≤130

3300

35

1.2

≥180

≥450

DM-3525-024-6000

24

≤50

6000

≤170

4500

45

2.1

≥250

≥700


Remark :

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,

like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects



Company Profile

About DONGMING

Shenzhen Dongming Motor Co.,Ltd  is a professional provider for research&development,production of various kinds of micro dc motors and dc gear motors.

Since the establishment in 2010, with superior geographical  location, accurate market positioning, efficient and professional R & D team, first-class product quality,

we became the major suppliers of micro dc motors and dc gear motors in China.We have two factories and more than 160 staffs in total;

Our products are widely used in communication equipment, office equipment, smart home appliances, electronic toys, model airplane, medical appliances,etc.
