12v 36mm planetary gear motor

USD50

5-999 Piece/Pieces
USD15

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

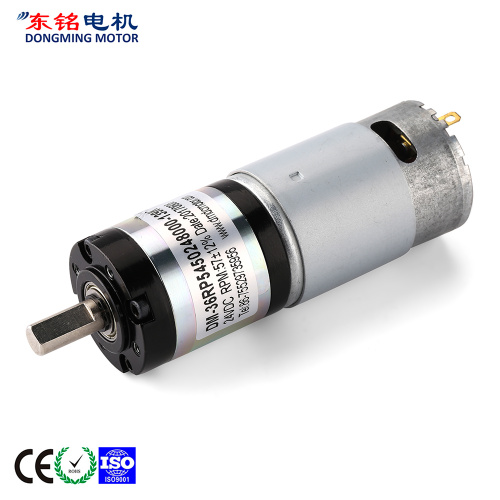

DM-36RP545 DC PLANETARY GEAR MOTOR

36mm Dc Planetary Gear motors are the mostly used micro Planetary Gear Motor in all motors. 36mm Planetary Gear Motor is including DM-36RP545 and DM-36RP555.

36mm dc gear motor refers to 36mm dc planetary gear motor, including DM-36RP555 and DM-36RP545 dc planetary gear motor. Moreover, DM-36RPBL3650 brushless dc planetary gear motor

is also a 36mm dc planetary gear motor. These motors are always with high torque at low speed. They has a longer working life than spur gear motors.

getriebemotor 24 dc

Main voltage : 12VDC.24VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.

getriebemotor 24v dc

Gearbox Data :

Number of stages	1	2	3	4	5
Reduction ratio	3.7.5.2	14.19.27	51.71 100.139	189.264.369.515.721	977.1367.1910.2671.3736
Gearbox length [L"mm	26.5	34.5	42.5	50.5	58.5
Breaking torque(kgf.cm)	10	18	40	50	60
Gearbox efficiency	90%	81%	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-545-012-3000	12	≤110	3000	≤450	2200	100	2.3	≥320	≥1440
DM-545-012-4500	12	≤220	4500	≤800	3300	150	5.1	≥480	≥2400
DM-545-012-6000	12	≤350	6000	≤1500	4500	200	9.2	≥640	≥4400
DM-545-024-3000	24	≤60	3000	≤230	2200	100	2.3	≥320	≥720
DM-545-024-4500	24	≤110	4500	≤400	3300	150	5.1	≥480	≥1200
DM-545-024-6000	24	≤150	6000	≤750	4500	200	9.2	≥640	≥2400

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-36RP5450126000-139K	12.0	0.32	42.0	1.28	34.5	17.70	6.27	99.00	5.73
DM-36RP5450126000-100K	12.0	0.39	59.6	1.59	47.9	16.70	8.21	85.11	6.49
DM-36RP5450243000-721K	24.0	0.07	4.2	0.22	3.2	49.00	1.61	210.00	0.72
DM-36RP5450244500-100K	24.0	0.14	39.6	0.65	31.6	18.00	5.85	89.00	2.63
