Dc Gear Motor with encoder

USD15

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Hongkong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Hongkong,Shenzhen

Product Description

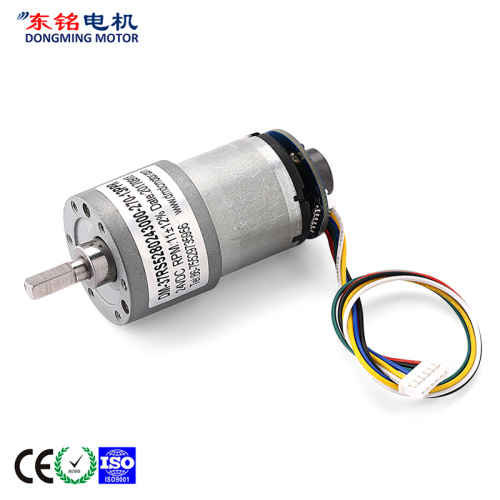

DM-37RS528 DC SPUR GEAR MOTOR

dc gear motor with encoder means a dc motor with encoder and a suitable gearbox. If customer request dc motor with encoder, the door lock gear motor should have a relative high torque(a high speed), at the same time, the gearbox should use a big gear ratio. For 37mm dc spur gear motor, like DM-37RS528, the recommend motor speed is not more than 9000rpm and the biggest gear ratio is 2430. We can get a very low speed as 3-5 rpm and 3-4N torque.

dc gear motor 12v 30 rpm

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

12v 1rpm dc geared motor

Gearbox Data :

Number of stages	2	3	4	5	6	7
Reduction ratio	6.8.10	20.30	61.90	122.184.270	311.414.534 552.810	1243.1656 2430
Gearbox length [L"mm	19	22.5	25	27.5	30	31.5
Breaking torque(kgf.cm)	8	10	30	30	40	40
Gearbox efficiency	81%	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-528-012-3000	12	≤40	3000	≤180	2200	40	0.9	≥160	≥720
DM-528-012-4500	12	≤60	4500	≤350	3300	60	2.0	≥210	≥1400
DM-528-012-6000	12	≤70	6000	≤720	4500	80	3.7	≥300	≥2800
DM-528-024-3000	24	≤15	3000	≤80	2200	40	0.9	≥140	≥320
DM-528-024-4500	24	≤25	4500	≤180	3300	60	2.0	≥210	≥730
DM-528-024-6000	24	≤45	6000	≤360	4500	80	3.7	≥300	≥1400

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-37RS5280064500-270K	6.00	0.08	16.8	0.35	14.1	5.00	0.79	34.50	1.84
DM-37RS5280067000-30K	6.00	0.22	230.4	0.97	191.8	1.21	2.39	7.25	4.66
DM-37RS5280068000-61K	6.00	0.22	133.6	1.03	110.2	2.46	2.78	14.01	4.91
DM-37RS5280123000-810K	12.00	0.05	3.4	0.15	2.5	18.80	0.49	71.22	0.42
DM-37RS5280126000-30K	12.00	0.07	190.9	0.29	158.8	0.88	1.44	5.26	1.42
DM-37RS5280126000-61K	12.00	0.08	92.0	0.34	75.1	2.01	1.55	10.97	1.48
DM-37RS5280243000-552K	24.00	0.01	5.3	0.06	4.2	8.90	0.39	43.98	0.23
DM-37RS5280244500-184K	24.00	0.04	23.1	0.12	16.9	5.00	0.92	19.80	0.34
DM-37RS5280246000-30K	24.00	0.04	188.2	0.17	152.5	1.17	1.84	6.18	0.75
DM-37RS5280246000-61K	24.00	0.07	86.0	0.23	65.0	2.90	1.94	11.88	0.73
DM-37RS5280247000-534K	24.00	0.07	12.6	0.26	9.9	17.99	1.83	84.68	0.96
