12v reversible gear motor

USD10

5-999 Piece/Pieces
USD5

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Hongkong, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Hongkong,Shenzhen

Product Description

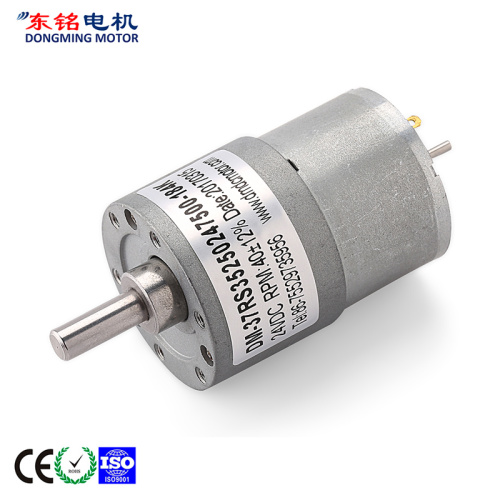

DM-37RS3525 DC SPUR GEAR MOTOR

The most common seen 37mm dc gear motor contains DM-37RS3525 vending machine dc gear motor, DM-37RS3530 dc gear motor for vending machine

and DM-37RS3540 rotisserie dc motor. These Gear Motor 12v are usually applied on vending machine, rotisserie, ATM and so on.

Sometimes customer request directly electric rotisserie motor, in order to provide a suitable proposal, we firstly need to know the requirements about working voltage

rated speed and torque. For standard rottisserie motor, it is usually under 6v voltage, and it need a 3-5 rpm dc gear motor, and the rated torque is at least 10kgf.cm.

Then DM-37RS35250065000-810K would be a very good choice.

Vending Machine Dc Gear Motor

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

Dc Gear Motor for Vending Machine

Gearbox Data :

Number of stages	2	3	4	5	6	7
Reduction ratio	6.8.10	20.30	61.90	122.184.270	311.414.534 552.810	1243.1656 2430
Gearbox length [L"mm	19	22.5	25	27.5	30	31.5
Breaking torque(kgf.cm)	8	10	30	30	40	40
Gearbox efficiency	81%	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3525-012-3000	12	≤40	3000	≤170	2200	25	0.6	≥120	≥600
DM-3525-012-4500	12	≤60	4500	≤250	3300	35	1.2	≥180	≥900
DM-3525-012-6000	12	≤100	6000	≤450	4500	45	2.1	≥200	≥1300
DM-3525-024-3000	24	≤25	3000	≤80	2200	25	0.6	≥100	≥300
DM-3525-024-4500	24	≤30	4500	≤130	3300	35	1.2	≥180	≥450
DM-3525-024-6000	24	≤50	6000	≤170	4500	45	2.1	≥250	≥700

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-37RS35250063000-810K	6.0	0.09	3.6	0.21	2.3	9.58	0.23	27.88	0.43
DM-37RS35250068000-534K	6.0	0.27	15.2	1.00	11.8	14.03	1.70	62.49	3.54
DM-37RS35250126000-61K	12.0	0.03	92.3	0.22	77.2	1.48	1.17	9.00	1.18
DM-37RS35250126000-90K	12.0	0.04	64.6	0.23	54.0	2.26	1.25	13.69	1.17
DM-37RS35250243000-121K	24.0	0.03	21.6	0.07	16.5	2.61	0.44	11.07	0.22
DM-37RS35250243200-810K	24.0	0.03	3.8	0.07	2.7	13.08	0.36	42.79	0.16
DM-37RS35250244500-20K	24.0	0.03	199.8	0.11	155.3	0.58	0.93	2.61	0.37
DM-37RS35250246000-184K	24.0	0.03	32.6	0.12	26.5	3.98	1.08	21.12	0.53
DM-37RS35250248000-30K	24.0	0.04	262.8	0.26	223.4	1.19	2.73	7.94	1.48
