12 volt dc right angle gear motor

12 volt dc right angle gear motor

12 volt dc right angle gear motor

USD15

5-999 Piece/Pieces
USD6

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

Product Description

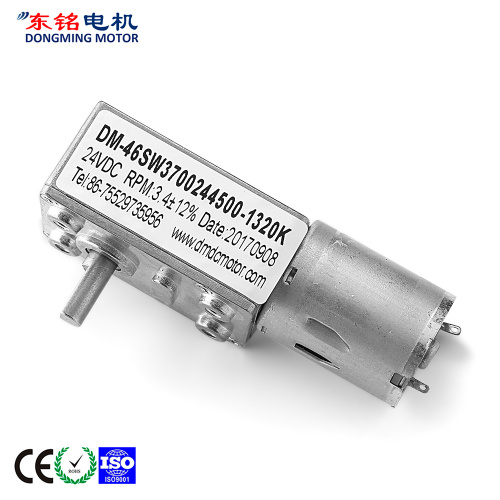

DM-46SW370 DC WORM GEAR MOTOR

DM-46SW370 is a newly developed type Dc Motor Worm Gear is all 46mm Dc Worm Gear Motor. It is also work with 3v, 6v, 12v or 24v.

12v Dc Worm Gear Motor DM-46SW370 is the most common used in daily life, especiall some home applicance like range hood and so on.

Different with dc spur gear motor and dc planetary gear motor, dc worm gear motor is with self-lock function. When the power supply is off,

the motor stop working and the output shaft is fixed. The shaft could be not rotate by hand.

gearbox suppliers

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Game machine, Vending machine, Window power

supply, Office equipment, Household appliance,

Automation equipment.

geared electric dc motor

Gearbox Data :

Number of stages	3	4
Reduction ratio	71.109.130.157.174	244.263.285.309.336.367.401.441.486 539.684.742.806.865.938.1020.1112.1217 1336.1474.1635
Gearbox length [L"mm	25	25
Breaking torque(kgf.cm)	10	15
Gearbox efficiency	40%	36%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-370-006-3000	6	≤40	3000	≤160	2500	15	0.4	≥68	≥520
DM-370-006-4500	6	≤56	4500	≤300	3300	25	0.8	≥115	≥860
DM-370-006-6000	6	≤80	6000	≤450	4500	35	1.6	≥165	≥1800
DM-370-012-3000	12	≤20	3000	≤80	2500	15	0.4	≥68	≥250
DM-370-012-4500	12	≤35	4500	≤150	3300	25	0.8	≥115	≥550
DM-370-012-6000	12	≤50	6000	≤220	4500	35	1.6	≥165	≥980

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-46SW3700246000-1635K	24.0	0.05	3.6	0.18	3.1	14.5	0.48	30.00	0.87

Curve Chart :

Model: DM-46SW3700246000-1635K

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects

Company Profile

About DONGMING

Shenzhen Dongming Motor Co.,Ltd is a professional provider for research&development,production of various kinds of micro dc motors and dc gear motors.

Since the establishment in 2010, with superior geographical location, accurate market positioning, efficient and professional R & D team, first-class product quality,

we became the major suppliers of micro dc motors and dc gear motors in China.We have two factories and more than 160 staffs in total;

Our products are widely used in communication equipment, office equipment, smart home appliances, electronic toys, model airplane, medical appliances,etc.
