12v dc geared motor high torque

USD15

5-4999 Piece/Pieces
USD7

≥5000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

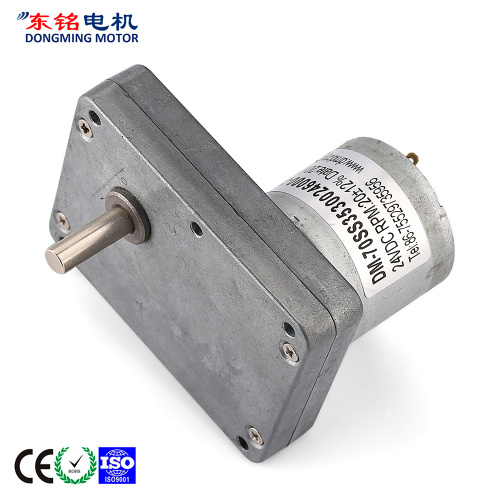

DM-70SS3530 DC SPUR GEAR MOTOR

On the foundation of 65mm dc spur gear motor, we develop a larger size gearbox. This is 70mm dc spur gear motor. It is also a kind of Micro Motor Gearbox.

This mini Dc Gear Motor can produce higher torque. Many industrial machines would have special request for this kind of Mini Gear Motor.

Some customer tend to use round type spur gearbox while some customer prefer to use square type spur gearbox.

70mm spur gearbox is a typical square type gearbox often used on industrial equipment.

motor gear reducer

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

motor gearbox

Gearbox Data :

Number of stages	3	4	5
Reduction ratio	54.73	217.293	564.763
Gearbox length [L"mm	15	15	15
Breaking torque(kgf.cm)	30	50	100
Gearbox efficiency	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3530-012-3000	12	≤40	3000	≤240	2200	40	0.9	≥160	≥700
DM-3530-012-4500	12	≤60	4500	≤450	3300	50	1.7	≥300	≥1400
DM-3530-012-6000	12	≤90	6000	≤700	4500	60	2.8	≥350	≥2000
DM-3530-024-3000	24	≤20	3000	≤150	2200	40	0.9	≥160	≥400
DM-3530-024-4500	24	≤30	4500	≤230	3300	50	1.7	≥220	≥600
DM-3530-024-6000	24	≤45	6000	≤360	4500	60	2.8	≥330	≥900

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-70SS35300129500-564K	12	0.36	14.5	1.14	11.1	37.65	4.290	161.50	3.70
