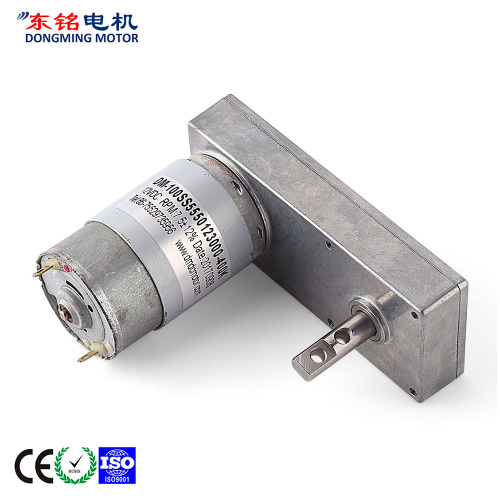

DM-100SS555 DC SPUR GEAR MOTOR

For now, 100mm dc spur gear motor only contains DM-100SS555 Dc Spur Gear Motor. The gearbox size is 99.5mm*42mm.

This High Torque Dc Geared Motor is different with other Vending Machine Gear Motor.

100mm dc gear motor refers to 100mm dc spur gear motor, including DM-100SS555 high torque dc gear motor. This motor contains a 99.5mm square

gearbox and DM-555 dc motor. For now, we have only one gear ratios for this gearbox. It is 5 stages and the gear ratio is 400.

miniature gear motors

Main voltage : 12VDC.24VDC

Typical applications :

Pan/tilt camera, automatic shutter, welding machine, IC water meter

Card, barbecue oven, washing machine, waste disposal, household appliances,

Slot machines, money detector, automatic actuator, coffee machine, towel disposal,

Lighting coin returned equipment, peristaltic pump.

miniature gearbox

Gearbox Data :

Number of stages	5
Reduction ratio	400
Gearbox length [L"mm	17
Breaking torque(kgf.cm)	120
Gearbox efficiency	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-555-012-3000	12	≤140	3000	≤800	2200	150	3.4	≥480	≥2400
DM-555-012-4500	12	≤220	4500	≤1200	3300	220	7.4	≥700	≥3840
DM-555-012-6000	12	≤350	6000	≤2000	4500	300	13.8	≥960	≥4800
DM-555-024-3000	24	≤70	3000	≤400	2200	150	3.4	≥480	≥1280
DM-555-024-4500	24	≤110	4500	≤600	3300	220	7.4	≥700	≥2400
DM-555-024-6000	24	≤180	6000	≤1000	4500	300	13.8	≥960	≥3200

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-100SS5550062500-400K	6	0.346	5.8	1.108	4.4	40	1.815	169	3.554

Curve Chart :

Model: DM-100SS5550062500-400K

DM-100SS555-2

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
