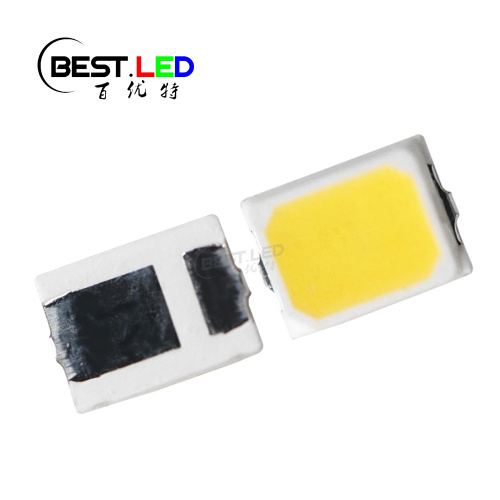

SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
  • SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
  • SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
  • SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
  • SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
  • SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm
SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm

SMD 2016 LED Daylight White 5000-5500K 60mA 24-28lm

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,WU
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

What is 5500K LED?

Color temperature are available from 1800K to even 30000K in white SMD LED or white led lamps. In this 2016WC50K28L3W, it provides 5000-5500k color temperature, which is those white color that not yellow-ish and not blue-ish. As we know, the small number of CCT(color temperature), the yellow-ish color of white LED will get. And the big number of CCT, the blue-ish color of white LED will get. If you just need some white LED that in the middle tone, just check with this 5000-5500K. And this 2016 SMD LED have a small size in 2.0x1.6mm, which is more easy to fit with different kind of lighting project. Contact us for more detail about it~

2016WC50K28L3W SMD 2016 LED Daylight White LED 5000-5500K Cool white LED SMD 60mA 24-28lm


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

28

lm

IF=60mA

Color temperature

CCT

5000                   5500

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


Size of 2016 SMD LED SMT:

Size of 2016WC50K28L3W SMD 2016 LED Daylight White LED 5000-5500K Cool white LED SMD 60mA 24-28lm

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
