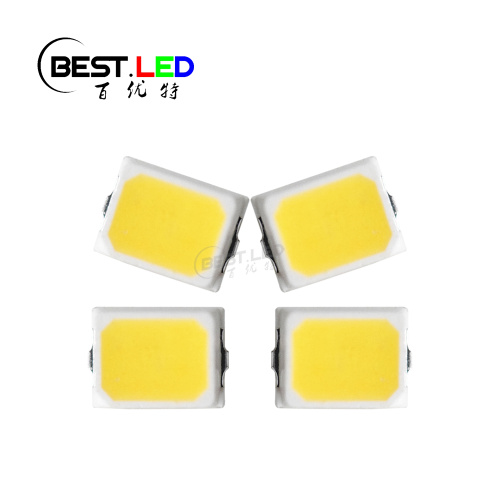

High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
  • High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
  • High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
  • High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
  • High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
  • High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W
High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W

High-CRI LED 2016 SMD Warm White 2900-3100K 0.5W

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

Do warm white LED lights look yellow?

Warm white LED have a color temperature in range of 2600-3500K. When we light up the warm white SMD LED or white through-hole LED, it will emits white color light but looks more yellow-ish but we cannot call it as yellow color. Kinds of similar as the color of sun in afternoon. But if we need it looks same as the yellow LED, the common warm white LED cannot make it. In that case, we have to down the color temperature to 1600-1800K then it can make it as amber color. Which is the PC amber LED and wavelength will be like 595nm LED or 590nm LED.

2016WW30K60L4W High CRI LED 2016 SMD Warm White 2900-3100K 0.5W


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=150mA

Luminous Flux

IV

50

-

60

lm

IF=150mA

Color temperature

CCT

2600                    2800

 K

IF=150mA

Viewing Half Angle

 2θ1/2


120



deg

IF=150mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension;

Size of 2016WW30K60L4W High CRI LED 2016 SMD Warm White 2900-3100K 0.5W

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
