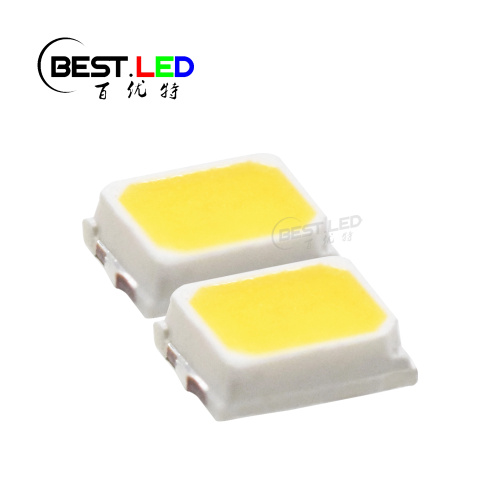

High CRI LED 2016 SMD 0.5W White 3500-4000K
- Min. Order:
- 4000 Piece/Pieces
- Min. Order:
- 4000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 30000000 |
Supply Ability: | 30000000/Month |
Payment Type: | T/T,Paypal,W/U |
Incoterm: | FOB |
Certificate: | ISO:9001 |
HS Code: | 8541410000 |
Transportation: | Ocean,Land,Air,Express,Others |
Port: | SHENZHEN |
Is 4000K brighter than 3000K?
In the same package of SMD LED or Through-hole LED and same size of chip inside the package, when we light up both of 4000K LED and 3000K. 4000K will looks brighter even they got the same lumens. Because of color temperature, the color of 3000K LED will be more close to amber LED and looks more yellow-ish. Which is why people name those as warm white LED. 4000K color looks more whiter, which make people name it as neutral white LED. The color temperature of 3500k to 4000k light will came out from 2016WW3560L4W White SMD LED when it's working. If you need more information about that, just feel free to contact us.
Electrical Parameters:
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
Forward Voltage |
VF |
2.8 |
- |
3.2 |
V |
IF=150mA |
Luminous Flux |
IV |
50 |
- |
60 |
lm |
IF=150mA |
Color temperature |
CCT |
3500 4000 |
K |
IF=150mA |
||
Viewing Half Angle |
2θ1/2 |
|
120 |
|
deg |
IF=150mA |
Reverse Current |
IR |
|
|
5 |
uA |
VR=5V |
*Luminous intensity is measured by ZWL600.
*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
White 2016 SMD LED Demension;
*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*
Product Details:
99.99% purity gold wire;
Silver plated LED frame;
Famous branded chips;
High quality epoxy;
