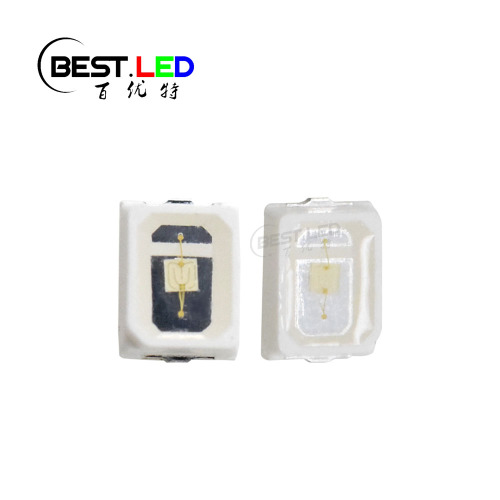

SMD 2106 Green 530nm LED Emitter 0.5W SMT

How many volts does a green LED need?

2016LGD53D5L20 is a green SMD LED that have size of 2.0x1.6mm and emits the green color light that with 530nm wavelength. It has a typical forward voltage range of 3.0-3.2V. We can adjust the resistor in the circuit according to this information. Different with common SMD LED. It have a big green LED chip inside so that it can handle 150mA operation current and emits the brightness at 40lm. If you looking for some small SMD LED for your project, this high brightness LED with 2016 SMD LED package will work perfect for your project.

Electrical Parameters:

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Green SMD LED 2016 SMD LED Demension;

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
