500nm 2835 Green SMD LED Cyan LED

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

-2835 Green SMD LED-

2835PGC-50D15LI60-22

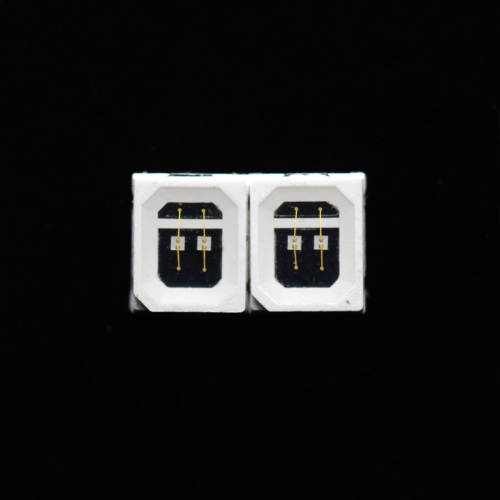

As you can see in the picture, there have 2 chips inside of the 2835 SMD LED. Normally, we just put one single LED bare die inside for the lighting. But for some lighting project and application, there will need some higher power green SMD LED to handle more current and reach higher output! We using the pure gold wire for the inside connection, which can make this 2835 SMD LED have a longer lifespan and long life solid state reliability. With 2 chips inside, these SMD LED will emits more diffused light and can light up bigger area. Are you interesting in this 2 chips green SMD LED? Contact us for more detail about it~

green led

- Size:2.8*3.5*0.8mm

- Chip Number: 2 chips

- Color: Green

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

500nm green led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter

Symbol

Rating

Power Dissipation

Pd

200mw

Pulse Forward Current

IFP

200mA

Forward Current

IF

60mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

1000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Bag

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

2.8

3.0

3.4

V

IF=60mA

Luminous Flux

Φ

10

15

lm

IF=60mA

Peak Wavelength

λP

498

nm

IF=60mA

Dominant Wavelength

λd

500

502

505

nm

IF=60mA

Half Width

Dl

13

nm

IF=60mA

Viewing Half Angle

2q1/2

±60

deg

IF=60mA

Reverse Current

IR

5

uA

VR=5V

*Luminous Intensity is measured by ZWL600.

*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Green SMD LED 2835 , 2835 Green 2 Chips LED , 500nm LED Cyan

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	200mA
Forward Current	IF	60mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8	3.0	3.4	V	IF=60mA
Luminous Flux	Φ	10		15	lm	IF=60mA
Peak Wavelength	λP		498		nm	IF=60mA
Dominant Wavelength	λd	500	502	505	nm	IF=60mA
Half Width	Dl		13		nm	IF=60mA
Viewing Half Angle	2q1/2		±60		deg	IF=60mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
