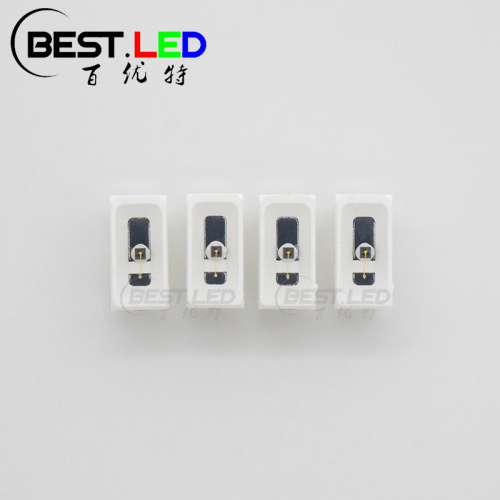

Side View Standard LEDs IR 850nm Infrared LED

Is 850nm Infrared LED?

 Definitely yes. We can name all the LED that wavelengt over than 700nm. 850nm LED can be widely use in kinds of hunting camera, security camera or some security control system. Which can offer the best light during it's working. Compare with 940nm LED. Both of them are IR LED, but 850nm LED will got brighter slight red spot than 940nm LED when it's working. In this case, the concealment of 850nm IR LED might not be as goods as 940nm, but it did work better in the lighting for night vision camera. In this 3015FIRC-85L14I100, we produce 850nm as side emitting LED, which can emits the radiation and light from the side. If you need this side view 850nm LED for your project, just feel free to contact us for more detail~

850nm infrared LED 3014 Side View Standard LED Size:

* Yellow LED, IR LED, UV LED, Blue SMD LED ect are also available in this SMD LED case*

Electrical Parameters:

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

HANDLING PRECAUTIONS:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
