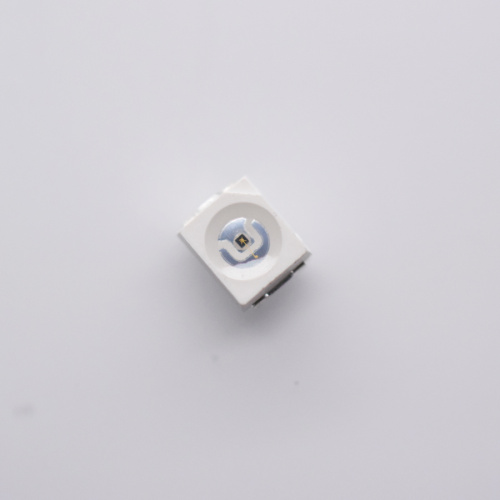

- 3528 SMD LED -

3528FIRC-85L14I100

Infrared IR 810nm LED are applicable to monitor infrared lighting, iris recognition, face payment, infrared touch screen, measurement and control, thermal printer and other electronic. Near infrared LED high power 720nm/810nm/820nm/830nm/840nm/860nm. Shenzhen Best LED Opto-electronic Co.,Ltd can package this 810nm LED bare die with different case such as: 10mm infrared LED, 8mm through-hole LED, 5mm through-hole LED, 3mm through-hole LED or 810nm SMD LED, 810nm diffused LED ect. 2835FIRC-81L/14I100 is is a high efficiency infrared emitting diode in GaAlAs on GaAs technology, molded in clear, white clear tinted plastic packages. In comparison with the standard GaAs on GaAs technology these emitters achieve more than 100 % radiant power improvement at a similar wavelength.The forward voltages at low current and at high pulse current roughly correspond to the low values of the standard technology. Therefore these emitters are ideally suitable as high performance replacements of standard emitters.What's the different between infrared SMD LED and infrared Through-hole LED? The angle is the most different point. As we know, SMD LED is the short name of surface mount device, which means there is a plane lens for these LED mostly (If you really need SMD LED have a angle, we can add a lens on the top of SMD LED when we finished the production) . On the other hand, for Through-hole LED, there have lots of angle for your choose, such as: 10 degree, 30 degree, 45 degree, 60 degree ect, You will got longer radiation distance when you choose the narrower angle for the through-hole LED.

-Dimension Parameters -

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	500mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee		5	8	mw/sr	IF=20mA
		20		30		IF=50mA
		40		50		IF=100mA
Viewing Angle	2q1/2		120		deg	IF=50mA
Peak Wavelength	λp	850	855	865	nm	IF=50mA
Spectral Bandwidth	Dl		50		nm	IF=50mA
Forward Voltage	VF	1.2	1.35	1.6	V	IF=20mA
		1.3	1.55	1.7		IF=50mA
		1.6	1.7	2.0		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
