1W Green LED 520-525nm 3535 SMD LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

-3535 Green SMD LED -

3535LGC-1W

Common SMD LED will just got 0.06W output, 0.2W or 0.5W. If all this cannot meet your requirement, these 3535 green SMD LED with 1W LED might can meet your requirement for your project. 3535 SMD LED case is a high power SMD LED case, which can handle the extra heat when high power LED is working. When LED is working, it will make some extra heat definitely. So that is very important that LED case can dispatch the extra heat timely. These case have a heat stink on the bottom, which are very perfect for dispatching the extra heat~ Do you need some green LED with high output? Contact us now~ This quality won't let you disappointment!

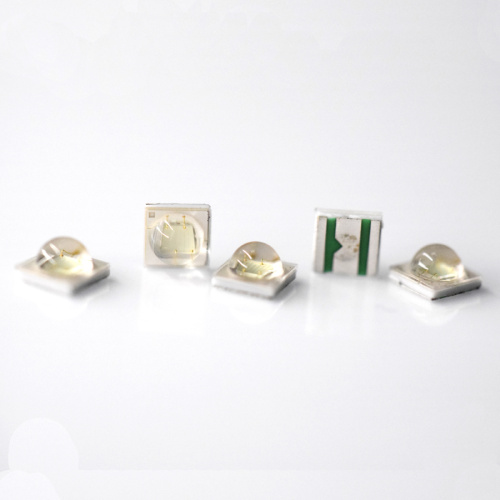

3535 green SMD LED

- Size: 3.5*3.5*2mm

- Chip Number: 1 chip

- Color: green LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3535 green SMD LED Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

1000mW

Pulse Forward Current

IFP

1000mA

Forward Current

IF

350mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

1000v

Warranty

Time

5Years

Antistatic bag

Piece

2000Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

2.8

3.0

3.5

V

IF=300mA

Luminous Flux

ΦV1

50

60

lm

IF=300mA

Dominant Wavelength

λD

515

520

525

nm

IF=300mA

Peak Wavelength

λP

528

nm

IF=300mA

Half Width

Dl

18

nm

IF=300mA

Viewing Half Angle

2q1/2

±60

deg

IF=300mA

Reverse Current

IR

5

uA

IF=300mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related Green LED -

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Green LED 1W , Green SMD LED 1W , 3535 Green LED

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8	3.0	3.5	V	IF=300mA
Luminous Flux	ΦV1	50		60	lm	IF=300mA
Dominant Wavelength	λD	515	520	525	nm	IF=300mA
Peak Wavelength	λP		528		nm	IF=300mA
Half Width	Dl		18		nm	IF=300mA
Viewing Half Angle	2q1/2		±60		deg	IF=300mA
Reverse Current	IR			5	uA	IF=300mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
