High Power Red LED 3535 SMD LED 1W

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 3020 Red SMD LED -

3535FRC-1W

Red SMD LED can have kinds of power like 0.06W small power LED, 0.2W red SMD LED, 0.5W LED, 1W or even 3W high power red LED. You can choose any one of them for your project. For example, if your current to each piece SMD LED is 20mA, then 0.06W LED might be good for your project. But if you need more brightness or will pass more higher current to your LED like 60mA, 150mA, 350mA, then the rest of them will be a better option for your project. For this 3535 red SMD LED, the power is 1W, which means this SMD LED can handle max 350mA for operation current. And at the same time, the more current you put on this red LED, the more brightness you will get from it. Do you need some red LED for your project? Contact us now~

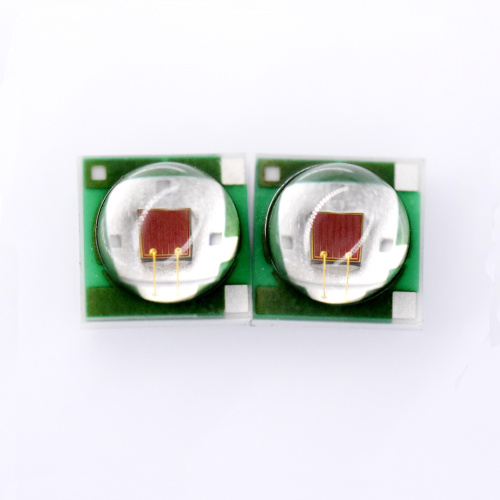

3535 SMD LED - High Power Red SMD LED

- Size: 3.5*3.5*2mm

- Chip Number: 1 chip

- Color: Red LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3535 SMD LED Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

3535 smd 620nm red led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

1000mw

Pulse Forward Current

IFP

1000mA

Forward Current

IF

350mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5Years

Antistatic bag

Piece

2000Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.9

2.1

2.5

V

IF=350mA

Luminous Flux

ΦV1

50

55

lm

IF=350mA

Dominant Wavelength

λD

620

625

630

nm

IF=350mA

Peak Wavelength

λP

633

nm

IF=350mA

Half Width

Dl

18

nm

IF=350mA

Viewing Half Angle

2q1/2

±60

deg

IF=350mA

Reverse Current

IR

5

uA

IF=350mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related LED -

Red SMD LED

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

3535 SMD LED 1W , Red SMD LED 1W , Red LED SMT 1W

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.9	2.1	2.5	V	IF=350mA
Luminous Flux	ΦV1	50		55	lm	IF=350mA
Dominant Wavelength	λD	620	625	630	nm	IF=350mA
Peak Wavelength	λP		633		nm	IF=350mA
Half Width	Dl		18		nm	IF=350mA
Viewing Half Angle	2q1/2		±60		deg	IF=350mA
Reverse Current	IR			5	uA	IF=350mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
