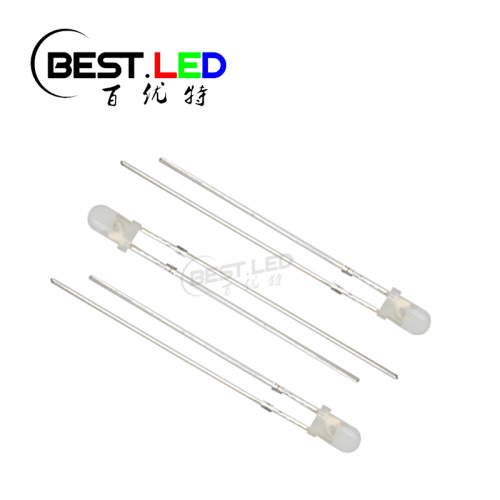

3mm Royal Blue 440nm LED Milky Lens

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000/Week
Supply Ability:	10000000/Week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

This 304BWD44D2L12 is a Blue Through-hole LED that with 440nm wavelength LED chip inside the 3mm LED package. 440nm LED can emit blue light, which is useful for a variety of applications including horticulture, aquarium lighting, and medical treatments. Comapre with 450nm LED, 460nm LED or 470nm LED, this 440nm LED will emits more deeper blue LED. Which will more close to purple color. Blue light has been shown to promote plant growth, enhance coral coloration, and improve skin conditions such as acne and psoriasis. It can also be used in industrial and commercial settings for sterilization and disinfection purposes. On the other hand, this blue LED Lamps are also good for kinds of DIY project. If you need more information about that, just feel free to contact us!

3mm Royal Blue 440nm LED

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.7	-	3.4	V	IF=20mA
Radiated Power	PO	-	20	-	mw	IF=20mA
Dominant Wavelength	λp	440			nm	IF=20mA
Half Width	λ△		25		nm	IF=20mA
Viewing Half Angle	θ1/2		40		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Deep Blue 3mm LED size:

size of 3mm Royal Blue 440nm LED

For all the through-hole LED Lamps, we will produce it with pure gold wire inside for the circuit connection, high quality epoxy lens to lead the lights, silver plated LED frame to hold the LED chip and connect the polarity. The most important thing is the famous branded chip inside for lighting, which will got the most stable lighting performance for our project.

304BC45D2L12 3mm Blue LED

There are kinds of application for this 3mm blue LED, some people just use it as LED indicator, some will use it as the back light project and some will use it for the LED therapy light.

Blue LED application 304BC45D2L12
