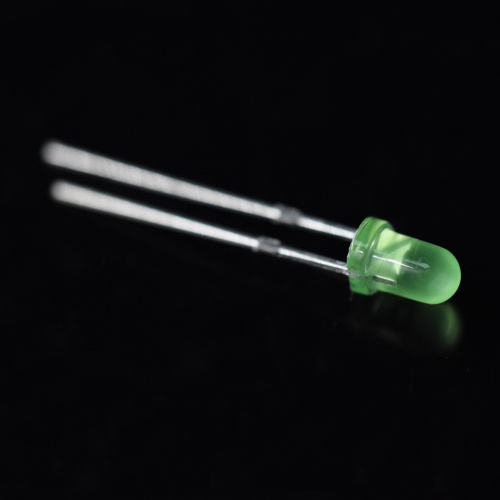

570nm LED 3mm Green Through-hole Diffused LED 3.0V

570nm LED 3mm Green Through-hole Diffused LED 3.0V

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 3mm Green Through-Hole LED -

302LGD-570L

302LGD-570L is a green LED which was packaged by 570nm LED bare die and green diffused lens. As we know, most of 570nm LED cannot have that bright brightness as same as normally 520nm green LED. So its same as these 303LGD-570L green through-hole LED. But this brightness just right for some project in some case, it didn't have that much brightness so that the lighting color is soft and easy to see by naked eyes. Some super bright green LED just blind your eyes for a minute when you see it directly by our naked eyes. These 570nm LED's color is yellower than normal green LED, if you need some yellow-green LED for your project, this one won't let you disappointment!

570nm green LED

- Size: 5.0*5.3mm

- Chip Number: 1 chip

- Color: 570nm led

- Type: green diffused

- Chip brand: EPISTAR

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

302GD LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation	Pd	100mW
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	100°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000pcs

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage	VF	3.0	3.2	3.6	V	IF=20mA
Luminous Intensity	IV	1000		2000	mcd	IF=20mA
Peak Wavelength	λP		575		nm	IF=20mA
Dominant Wavelength	λD	565	570	575	nm	IF=20mA
Half Width	Dl		11		nm	IF=20mA
Viewing Half Angle	2q1/2		±20		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		10		ns	IF=20mA
Fall Time	Tf		10		ns	IF=20mA
