Infrared 750nm Wavelength 5050 SMD LED Diffused Lens

Infrared 750nm Wavelength 5050 SMD LED Diffused Lens

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	30000000/Month
Payment Type:	T/T,Paypal,Others
Incoterm:	FCA,FOB,CIF,EXW
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

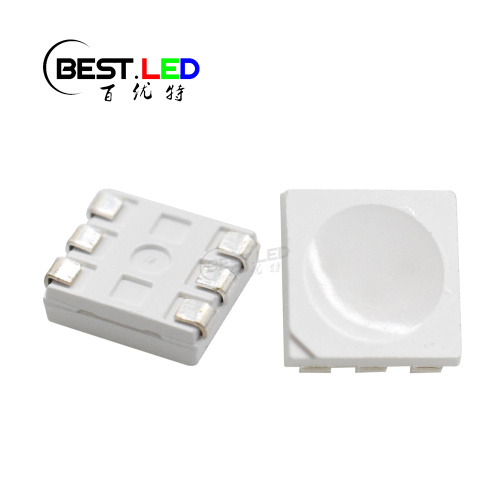

5050FIRWD75L14I100 is a IR LED that package with 750nm LED chip inside and cover with milky diffused lens on the top. The 5050 SMD LED package is a popular choice for this type of LED due to its compact size and high brightness output. The 750nm wavelength is in the near-infrared range and is commonly used for sensing and communication applications. For some of the application, people won't need that much of strong radiation. Then there comes the milky lens for help. Similar as LED Lamps, after we finished the progress of chip bonding and gold wire connection, we will cover a layer of epoxy on the top of LED so that we can make sure the chip were safely work in surrounding environment. In this case, we will cover it with clear lens normally. But in order to distribute the IR radiation, we make it with milky lens. If you need some of these SMD LED for your project, just feel free to contact us for more detail about that.

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.5	-	1.7	V	IF=60mA
Radiated Power	PO	-	20	-	mw	IF=60mA
Dominant Wavelength	λp	750			nm	IF=60mA
Half Width	λ△		25		nm	IF=60mA
Viewing Half Angle	θ1/2		140		deg	IF=60mA
Reverse Current	IR			5	uA	VR=5V
