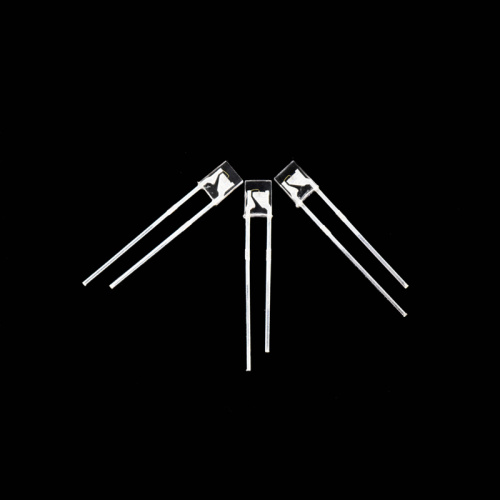

730nm IR LED Through-hole Rectangle LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 730nm LED -

232FIRC-73L14I100

730nm LED is a infrared LED, but we still can see some dim red color when it's working. Currently, the LED can be not just for lighting. With some special IR LED wavelength, such as: 680nm, 660nm, 680nm, 730nm, 810nm, 850nm or even some 980nm, 1505nm or 1550nm LED can work perfect for medical application or beauty industry(Soothes your skin with anti-inflammatory properties, heals and relieves skin disorders and stimulates the natural repair process) and remote control system ect. Do you need some 730nm LED or other wavelength LED with rectangle clear lens? Contact us for more detail about it!

730nm LED

- Size: 2mm*3mm*2mm High

- Pin length: 19mm/17mm

- Color: 730nm LED

- Type: clear

- Chip brand:Epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

232 LED

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	200mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Flux	IV	15		25	mcd	IF=50mA
Radiant Flux	IV	25		35	mcd	IF=100mA
Viewing Angle	2q1/2		120		deg	IF=50mA
Peak Wavelength	λp	720	730	740	nm	IF=50mA
Spectral Bandwidth	Dl		50		nm	IF=50mA
Forward Voltage	VF	1.7		2.4	V	IF=20mA
			1.9	2.4		IF=50mA
			2.3			IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
