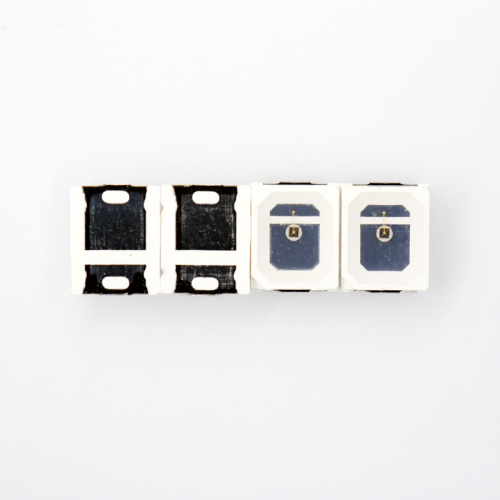

- 2835 SMD LED -

2835FIRC-75L/14I100

This 2835FIRC-75L/14I100 was packaged by 750nm(±10nm) bare die with 360um*360um chip size,Shenzhen Best LED Opto-electronic Co.,Ltd is a LED manufacturer that with more than 18 years experience factory. 750nm bare die are also available in kinds of LED case. 2835FIRC-75L/14I100 is a high efficiency infrared emitting diode in GaAlAs on GaAs technology, molded in clear, white clear tinted plastic packages. In comparison with the standard GaAs on GaAs technology these emitters achieve more than 100 % radiant power improvement at a similar wavelength.The forward voltages at low current and at high pulse current roughly correspond to the low values of the standard technology. Therefore these emitters are ideally suitable as high performance replacements of standard emitters. What's the different between infrared SMD LED and infrared Through-hole LED? The angle is the most different point. As we know, SMD LED is the short name of surface mount device, which means there is a plane lens for these LED mostly (If you really need SMD LED have a angle, we can add a lens on the top of SMD LED when we finished the production) . On the other hand, for Through-hole LED, there have lots of angle for your choose, such as: 10 degree, 30 degree, 45 degree, 60 degree ect, You will got longer radiation distance when you choose the narrower angle for the through-hole LED.

750nm infrared LED

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 750nm LED

- Type: Surface mount device

- Chip brand: Tyntek

- Nick mark: Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

Customized 750nm IR LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	270mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.2		2.7	V	IF=100mA
Pulse Forward Voltage	VF		3.6		V	IFP=350mA
Radiant Intensity	IE	50		70	mw/sr	IF=100mA
Peak Wavelength	λP	750	755	760	nm	IF=100mA
Total Radiated Power	PO		5.6		mw	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±60		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		25		ns	IF=100mA
Fall Time	Tf		13		ns	IF=100mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
