Super Bright 5mm IR LED 810nm 20-degree 0.3W

Super Bright 5mm IR LED 810nm 20-degree 0.3W

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

-Infrared LED Lamps-

503IRC-81L/14I80-20A

These 810nm LED can be used in night vision device, which can replace 850nm LED and add people face recognition. Same as all the through-hole LED, this 810nm infrared LED lamps are also have kinds of viewing for your choose: 5 degree 810nm LED, 20 degree 810nm LED, 30 degree 810nm LED, 60 degree 810nm LED, 90 degree 810nm LED ect. Normally, 940nm LED will be packaged with 5mm through-hole LED size or other SMD LED case. But for some project, people have to used larger lens to increase the radiating area. Compare with 5mm through-hole 940nm LED. 8mm IR LED will got a bigger lens than it and because of this lens, these 8mm infrared LED will got a more larger beam width which means it will make the IR LED got more radiating area. There also have kinds of shape and size for your choose on Best LED, if you need some special size, just feel free to contact us and we will produce this LED as your requirement~

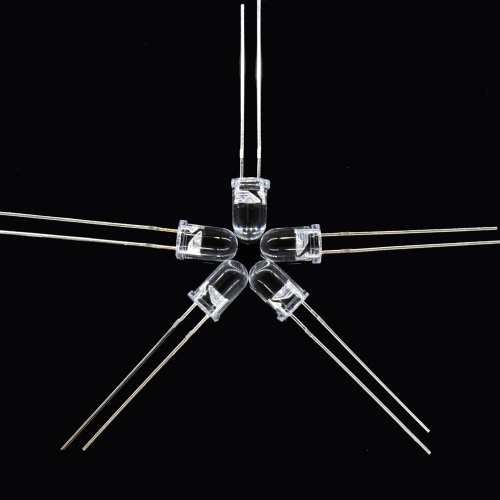

810nm IR LED - 20 Degree

- Size: 5 mm

- Chip Number: 1 chips

- Color: 810nm

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 8mm IR Through-hole LED -

5mm IR led size

*This case are also available for other LED, such as: 5mm green through-hole LED, UV LED, 660nm LED, 940nm LED, 5mm blue through-hole LED, yellow LED, amber LED ect*

- Working Through-hole IR LED -

Infrared LED emitting on camera

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole IR LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	200	mW
Pulse Forward Current	IFP	1000	mA
Forward Current	IF	100	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro-Static-Discharge(HBM)	ESD	2000	V
Service life under normal conditions	Time	80000	H
Warranty	Time	5	Years
Antistatic bag	Piece	1000	Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min		Typ	Max	Unit	Test Condition
Forward Voltage	VF		1.7		2.0	V	IF=100mA
	VFP		3				IFP=1000mA

Radiant Intensity	IE	80		100	mW/sr	IF=100mA
Radiant Intensity	IE		920		mW/sr	IFP=1000mA
Total Radiated Power	PO		200		mw	IF=100mA
Total Radiated Power	PO		2000		mw	IFP=1000mA
Peak Wavelength	λP		810		nm	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±3		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	tr		15		ns	IF=100mA
Fall Time	tf		6		ns	IF=100mA
