-Infrared LED Lamps-

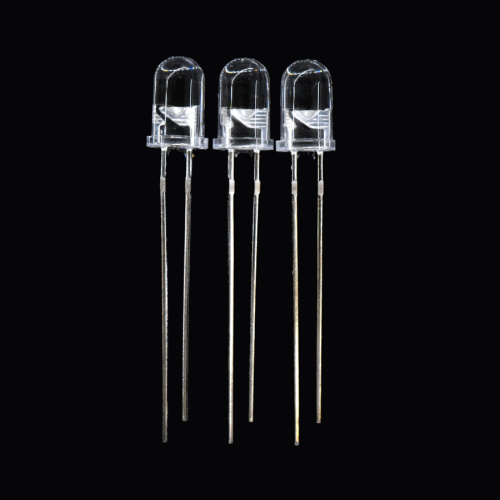

503IRC-81L/14I80-30A

We packaged this 810nm LED with 5mm clear lens and 30 degree lens. But for infrared emitters 5mm infrared LED, there also have other choose for this through-hole infrared LED, such as we can package this 810nm LED with light blue clear lens, black lens and deep blue lens. In the market, 810nm LED can be used to improve image contrast, making it easier to read patterns from recorded images. In addition, camera sensors have higher sensitivity at 810nm. Which means, at the same optical output, the camera systems will extends the range compared with 850nm system. 810nm LEDs are also widely used for some medical apparatus and instruments. Do you need some 5mm 810nm for your project? Contact us know! There have kinds of lens, radiation, shapes, size for your choose.

- Size: 5 mm - Chip Number: 1 chips - Color: 810nm  - Type: water clear - Chip brand: Tyntek

- Different color are available - Different wavelength are available - Warranty: 5 Years - RoHS, REACH, EN62471

- Uniform light output - Long life-solid state reliability - Low Power consumption -Anti UV epoxy resin package -High temperature resistance

- Size of 5mm IR Through-hole LED -

*This case are also available for other LED, such as: 5mm green through-hole LED, UV LED, 660nm LED, 940nm LED, 5mm blue through-hole LED, yellow LED, amber LED ect*

-  Working Through-hole IR LED  -

*Colors in the photo was took by camera, please take actual emitting color as standard.

-  Through-hole IR LED Parameter  -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	100	mW
Pulse Forward Current	IFP	1000	mA
Forward Current	IF	100	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	115	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro-Static-Discharge(HBM)	ESD	2000	V
Service life under normal conditions	Time	80000	H
Warranty	Time	5	Years
Antistatic bag	Piece	1000	Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol		Min		Typ	Max	Unit	Test Condition
Forward Voltage	VF			1.4		2.2	V	IF=100mA
	VFP			2.5		3.5		IFP=1000mA

Radiant Intensity	IE	75		90	mW/sr	IF=100mA
			250			IFP=1000mA
Total Radiated Power	PO		200		mw	IF=100mA
			2000			IFP=1000mA
Peak Wavelength	λP	800	805	810	nm	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±15		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	tr		15		ns	IF=100mA
Fall Time	tf		6		ns	IF=100mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lP is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden wire commection -



* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- IR LED Packing -

*We can pack this LED with any number of packages and taped or bend the LED pins as your requirement.
