- 850nm LED -

5050IRC-85L

Sometime, there will just have one single chip in the SMD LED. As we check the picture as follow, there have three position in 5050 SMD LED. So that 5050 SMD LED case can packaged in 3 chips inside. For some project, just one single chip might cannot reach that requirement. There have kinds of LED chip can be packaged in one 5050 SMD LED, which can be 3 different chip or 3 same chip. It's totally up to your requirement. If one single 710nm LED chip cannot meet your requirement, this one won't let you disappointment. Uniform light output, long life solid state reliability and low power consumption are all the advantage of this 3 chips 710nm SMD LED. Contact us for more detail about it~ In order to increase the output and radiation on one LED, we will package this with 3 same LED chip into 5050 SMD LED to reach stronger radiation or brightness.

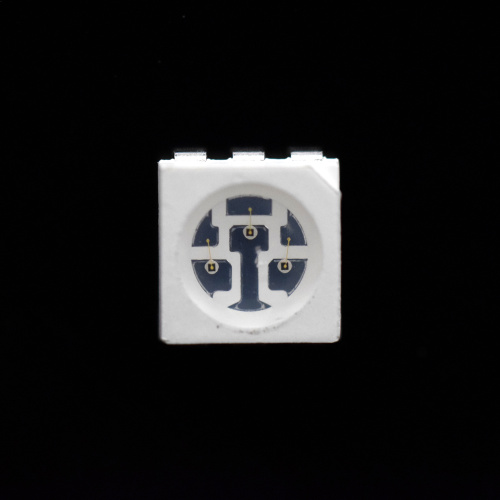

5050 smd ir led

- Size: 5.0*5.0*1.3mm

- Chip Number: 3 chips

- Color: 850nm LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

5050IRC SMD 850nm led

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

PLCC6 LED 3CHIPS IR

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.3	1.45	1.7	V	IF=60mA
		1.4	1.5	1.8	V	IF=90mA
		1.4	1.6	2.0	V	IF=150mA
Radiant Intensitye	Ee		15		mw/sr	IF=60mA
			23			IF=90mA
			38			IF=150mA
Peak Wavelength	λP	840	850		nm	IF=60mA
Half Width	Dl		25		nm	IF=60mA
Viewing Half Angle	2q1/2		±60		deg	IF=60mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
