MIR 750nm IR LED Dome Lens 2835 60-degree

MIR 750nm IR LED Dome Lens 2835 60-degree

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	EXW,FOB,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen

Product Description

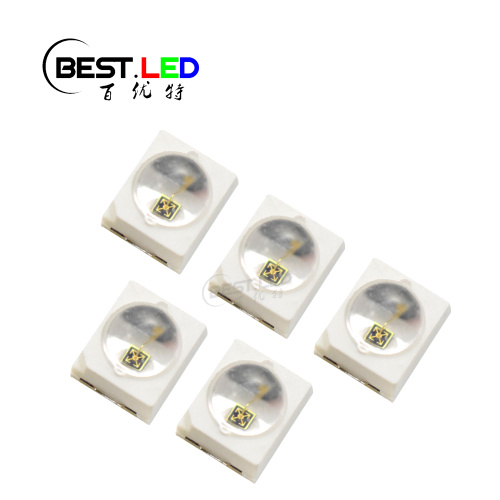

750nm LED Emitter with 2835 Dome Lens 60 degree

There are kinds of dome lens SMD LED in the LED market, such as 3535 SMD LED, 3838 SMD LED or high power package type. But it's all big size in SMT LED type. In this 2835FIRC75L14I100A60, different with common 3535 SMD LED, we produce it with 2835 SMD LED size and add a dome lens on the top of SMD LED. Then we got small size of dome lens SMD LED. In this case, we produce it with 750nm LED chip inside so that it will have a dim red light when you light it up.

2835FIRC75L14I100A60 MIR 750nm IR LED Dome Lens 2835 60-degree 750nm IR LED

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	2000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Rating	Unit
Forward Current	IF	100	mA
Forward Voltage	V	1.5-1.7	v
Luminous Intensity	IV	70	mw/sr
Wavelength	λP	750	nm
Packing	Piece	2000	Reel
Viewing angle	2θ1/2	60	Deg
