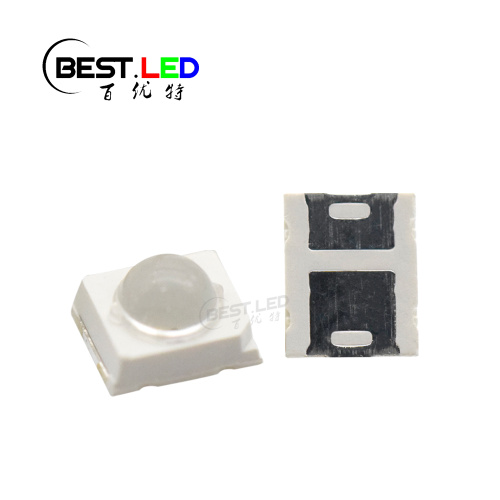

880nm Infrared Emitters 2835 Dome Lens 60-degree

880nm Infrared Emitters 2835 Dome Lens 60-degree

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	EXW,FOB,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen

Product Description

880nm IR LED Emitter;

Compare with 850nm LED, 880nm LED have longer wavelength. In this 2835FIRC88L14I100A60, we produce it with 2835 SMD LED case. And in order to provide a beam angle of 60, we also add a clear dome lens on the top of SMD LED. Which will also increase the radiation of this IR LED 880nm. 880nm infrared LED can be package with different size and different beam angle. If you have extra require for this IR LED just feel free to contact us for more detail about that!

2835FIRC88L14I100A60 880nm Infrared Emitters 2835 Dome Lens 60-degree

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	2000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Rating	Unit
Forward Current	IF	100	mA
Forward Voltage	V	1.5-1.7	v
Luminous Intensity	IV	90	mw/sr
Wavelength	λP	880	nm
Packing	Piece	2000	Reel
Viewing angle	2θ1/2	60	Deg
