1206 IR LED Receiver LED Photodiodes

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- IR Receiver -

1206PTD

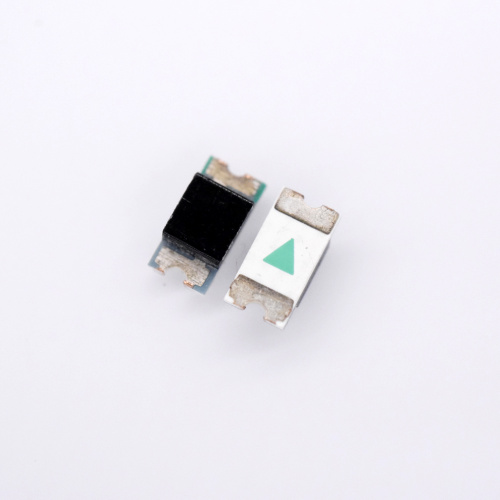

We packaged this ir receiver with 1206 SMD LED small size case, so that when your project didn't have that much space for install big size LED. This small infrared LED photodiode are still be easier to fit with your design. Typically, IR receiver will be packaged as black lens. Which can make sure even when this IR Receiver working in a environment that have many stray light. The receiver can still only receive the light that we needs and filter out some excess light. Black lens are perfect for this case. Do you need some ir receiver for your infrared system or project? Contact us for more detail~

IR Receiver - 1206 smd led

- Size:

- Chip Number: 1 chip

- Color:1206 IR LED Receiver

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Dimension Parameters -

1206 SMD LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	75	mW
Pulse Forward Current	IFP	100	mA
Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro-Static-Discharge(HBM)	ESD	2000	V
Warranty	Time	5	Years
Antistatic bag	Piece	1000	Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol		Min	Typ		Max	Unit	Test Condition
Forward Voltage	VF	1.8		2.0	2.4		V	IF=20mA

Luminous Intensity	IV	300		500	mcd	IF=20mA
Peak Wavelength	λP		635		nm	IF=20mA
Dominant Wavelength	λD	620	625		nm	IF=20mA
Half Width	Dl		15		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	tr		12		ns	IF=20mA
Fall Time	tf		10		ns	IF=20mA
