740nm IR LED 5mm Through-hole LED 90-degree

740nm IR LED 5mm Through-hole LED 90-degree

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

-Infrared LED Lamps-

503FIRC-74L14I150-90A

The more higher angle, the more radiation area. The more narrower angle, the more longer radiation distance. As we know, infrared LED can widely used in different area such as: industrial, scientific, military, law enforcement and medical applications. People might think that we can never see this infrared LED when it's working. These infrared LED must be invisible, but actually, near-infrared is the region closest in wavelength to the radiation detectable by the human eye. These 740nm infrared LED are also a near-infrared wavelength. We package this IR LED with 5mm through-hole LED clear lens and 90 degree viewing angle. Which can make sure this 5mm DIP infrared LED lamps will got a wider radiation area when it's working. Do you need some wide angle 740nm infrared LED for your project? Contact us for more detail about it~

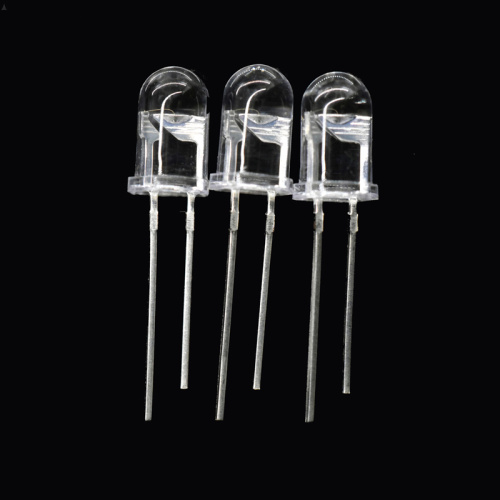

740nm 5mm led

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 740nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

*This through-hole LED package are also available in UV LED, Amber LED, Yellow LED, 5mm Green through-hole LED, 5mm blue through-hole LED ect.*

- Through-hole LED Radiant -

740nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Golden wire connection -

Parameter	Symbol	Rating
Power Dissipation	Pd	190mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	150mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.6	1.8	2.2	V	IF=100mA
Luminous Flux	IV		25		mcd	IF=100mA
Peak Wavelength	λP		730	740	nm	IF=100mA
Half Width	Dl		25		nm	IF=100mA
Viewing Half Angle	2q1/2		90		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
