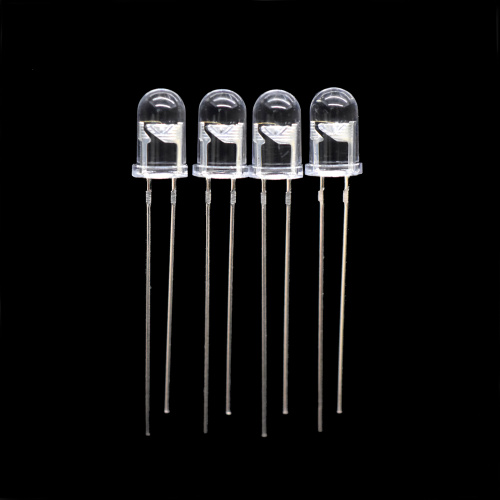

- Size of 5mm  Through-hole LED -

*This through-hole LED package are also available in UV LED, Amber LED, Yellow LED, 5mm Green through-hole LED, 5mm blue through-hole LED ect.*

-  Through-hole LED Radiant  -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃  Parameter Symbol Rating Power Dissipation Pd  200mw  Pulse Forward Current IFP  300mA  Forward Current IF  100mA  Reverse Voltage VR 5V Junction Temperature Tj 115°C Operating Tempertature Topr -40 - +80°C Storage Tempertature Tstg -40 - +100°C Soldering Temperature Tsol 260°C Electro-Static-Discharge(HBM) ESD 3000v Warranty Time 5Years Antistatic bag Piece 1000Back *Pulse Forward Current Condition:Duty 1% and Pulse Width=10us. *Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C Optical and Electrical Characteristics( Tc=25℃) Parameter Symbol Min Typ Max Unit Test Condition Forward Voltage VF 1.5  1.6 1.9 V IF=20mA 1.6 1.8 2.1 V IF=60mA 1.9 2.0 2.5 V IF=100mA Luminous Flux Φ 0.04 lm IF=20mA 0.1 lm IF=60mA 0.14 lm IF=100mA Luminous Power PO 6 15 mw IF=20mA 20 35 mw IF=60mA 35 50 mw IF=100mA Radiant Intensity Ee 70 80 mw/sr IF=100mA Peak Wavelength λP 750 760 nm IF=20mA Half Width Dl 24 nm IF=20mA Viewing Half Angle 2q1/2 ±30 deg IF=20mA Reverse Current IR 10 uA VR=5V *Luminous Intensity is measured by ZWL600. *q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. *lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

-  LED Packing -

*We can pack this LED with any number of packages and taped or bend the LED pins as your requirement.
